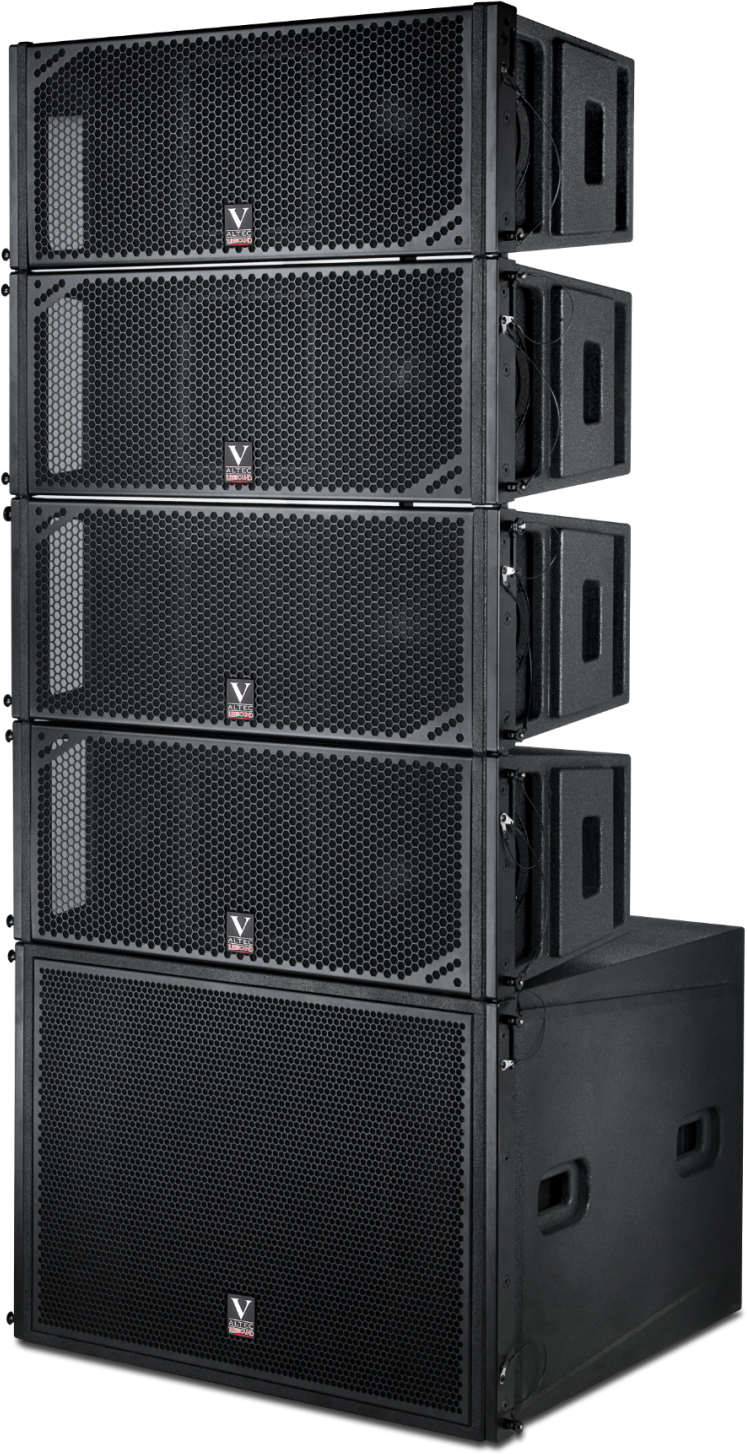

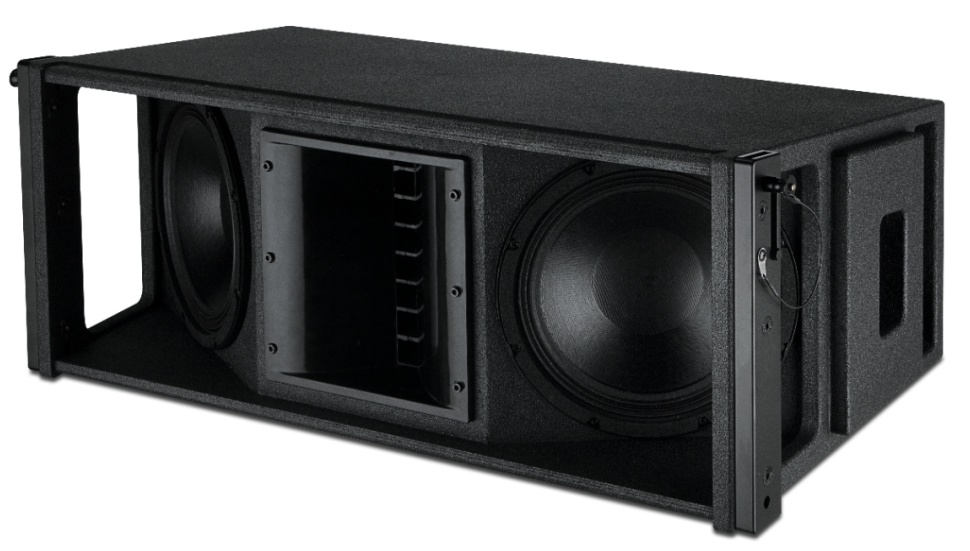

(2) Auxiliary Sound Reinforcement System
1)Surround loudspeakers (FX-Series coaxial point-source loudspeakers)
Adopting multi-angle cabinet design, its core advantage is the coaxial structure:high-frequency and mid-low-frequency drivers are arranged coaxially, significantly optimizing phase consistency and improving sound localization accuracy.Meanwhile, the cabinet size is more compact, ensuring consistent sound propagation paths, creating surround sensation and restoring ambient sound.
2)Stage monitor loudspeakers (FX-Series coaxial point-source loudspeakers)
Arranged at the front edge of the stage.As professional monitoring equipment, the coaxial point-source design ensures precise phase.High-fidelity reproduction allows performers to hear accompaniment and their own voice clearly, avoiding auditory delay during performance.The cabinet structure is suitable for stage placement without occupying performance space.
(3) Audio Processing & Amplification System
1)Digital Audio Processor (DPA-A Series)
As the core control unit of the system, it features multi-channel signal processing capability, supporting real-time equalization, delay, crossover and other processing.It can accurately adjust audio parameters of main, auxiliary and monitor systems to ensure
coordinated operation and natural sound field transition.The product supports various interface expansions to meet the complex signal transmission requirements of theaters.
2)Power Amplifier (VP Series)
Equipped in corresponding quantity according to loudspeaker power.VP Series adopts advanced Class-D technology and high-efficiency SMPS module design with high energy efficiency ratio.The 1U chassis provides strong output power and comprehensive protection: soft start, overheat, short circuit, mute on shutdown, etc.It operates stably and reliably, is energy-saving and environmentally friendly, suitable for long-time continuous operation in theaters.Main loudspeakers are equipped with dual-channel amplifiers, while monitors and auxiliary loudspeakers use four-channel amplifiers to optimize equipment resource allocation.
3)Digital Mixing Console (DM Series)
16-input channel model is selected.It features an intuitive user interface and supports multi-scene preset storage, enabling fast parameter switching for drama, conference, concert and other scenarios to meet diversified demands.It supports digital signal transmission with low sound quality loss and provides abundant effect modules to enhance audio expressiveness.
(4) Sound Pickup System
1)True Diversity Wireless Microphone (VQ Series)
Designed in UHF band with strong anti-interference ability and stable signal transmission, effectively avoiding interference in the theater.Handheld microphones are suitable for hosts, singers and main performers;lapel microphones are used for drama dialogue, lectures and other scenes, meeting pickup requirements of various performance forms.
2)Wired Conference Microphone (KU Series)
Used for conferences, speeches and guest presentations.It features high-sensitivity pickup, high sound restoration and stable wired connection, suitable for theater conference activities.
(5) Peripheral Equipment
1)Power Sequencer (KM-7009)
16-channel power sequencer is adopted, featuring intelligent power management.It can turn on/off equipment in preset sequence to avoid damage from instantaneous current impact, and supports overload protection to improve system operation safety, suitable for power supply management of complex theater equipment.
2)Microphone Antenna Amplifier (VK-888C)
coordinated operation and natural sound field transition.The product supports various interface expansions to meet the complex signal transmission requirements of theaters.
2)Power Amplifier (VP Series)
Equipped in corresponding quantity according to loudspeaker power.VP Series adopts advanced Class-D technology and high-efficiency SMPS module design with high energy efficiency ratio.The 1U chassis provides strong output power and comprehensive protection: soft start, overheat, short circuit, mute on shutdown, etc.It operates stably and reliably, is energy-saving and environmentally friendly, suitable for long-time continuous operation in theaters.Main loudspeakers are equipped with dual-channel amplifiers, while monitors and auxiliary loudspeakers use four-channel amplifiers to optimize equipment resource allocation.
3)Digital Mixing Console (DM Series)
16-input channel model is selected.It features an intuitive user interface and supports multi-scene preset storage, enabling fast parameter switching for drama, conference, concert and other scenarios to meet diversified demands.It supports digital signal transmission with low sound quality loss and provides abundant effect modules to enhance audio expressiveness.
(4) Sound Pickup System
1)True Diversity Wireless Microphone (VQ Series)
Designed in UHF band with strong anti-interference ability and stable signal transmission, effectively avoiding interference in the theater.Handheld microphones are suitable for hosts, singers and main performers;lapel microphones are used for drama dialogue, lectures and other scenes, meeting pickup requirements of various performance forms.
2)Wired Conference Microphone (KU Series)
Used for conferences, speeches and guest presentations.It features high-sensitivity pickup, high sound restoration and stable wired connection, suitable for theater conference activities.
(5) Peripheral Equipment
1)Power Sequencer (KM-7009)
16-channel power sequencer is adopted, featuring intelligent power management.It can turn on/off equipment in preset sequence to avoid damage from instantaneous current impact, and supports overload protection to improve system operation safety, suitable for power supply management of complex theater equipment.
2)Microphone Antenna Amplifier (VK-888C)
Used to enhance signal reception and expand coverage of wireless microphones, avoiding sound dropout caused by signal attenuation and ensuring stable use in the stage area.
3.Key Points for System Connection and Commissioning

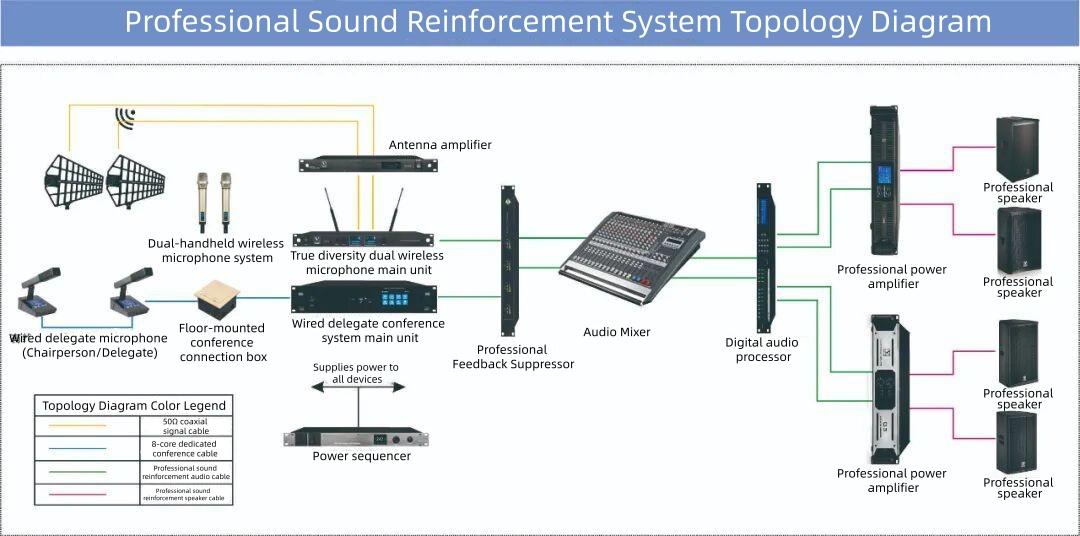

(1) System Connection Topology
1)Sound pickup equipment (wireless microphones, wired microphones) is connected to the digital mixing console via audio cables, and the output signal of the console is sent to the digital audio processor.
2)The digital audio processor distributes signals to the corresponding power amplifiers according to the preset crossover scheme, and the amplifier outputs are connected to the corresponding loudspeaker devices.
3)All equipment is powered uniformly through the power sequencer to ensure a standardized power-on sequence. The digital audio processor and the mixing console realize data interaction and control via network interfaces.
(2) Core Commissioning Points
1)Sound field coverage commissioning
Use the delay function of the audio processor to adjust the signal delay time of main loudspeakers and auxiliary loudspeakers to ensure uniform sound field coverage without phase interference.
Use a spectrum analyzer to measure the sound pressure level in different areas of the theater, ensuring the difference is controlled within ±3 dB, meeting the requirements of GB/T 28049-2011 Code for Design of Sound Systems in Auditoriums and Stadiums.
2)Sound quality optimization commissioning
According to the theater’s acoustic environment, adjust equalization parameters through the mixing console and audio processor to suppress resonant frequencies and improve speech intelligibility and music reproduction. Preset multiple groups of effect parameters for different performance types for quick switching.
3)System stability test
Carry out long-time continuous operation tests to check equipment heating and signal stability. Simulate sudden power failure to test the protection function of the power sequencer and parameter recovery after restart, ensuring stable system operation under various conditions.
