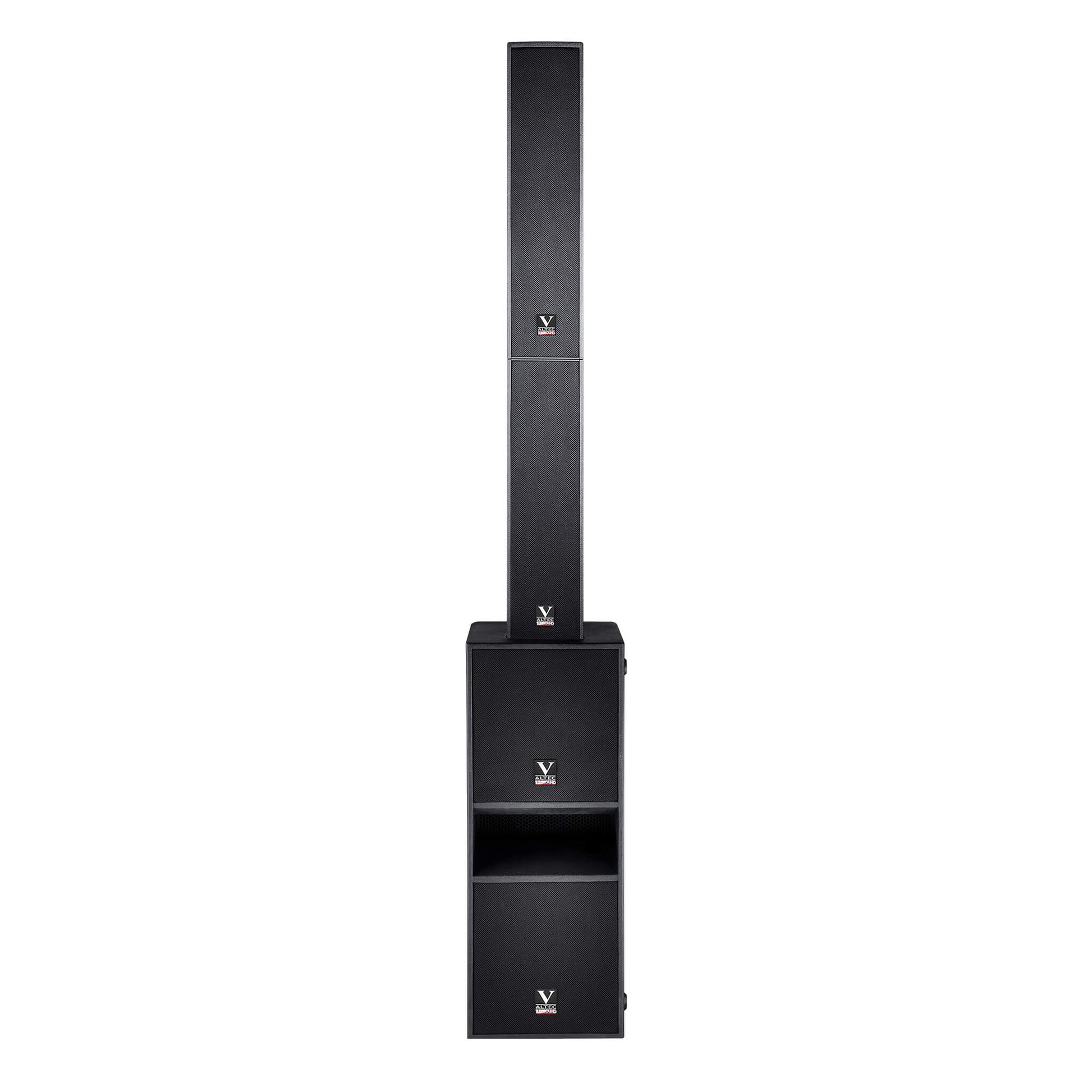

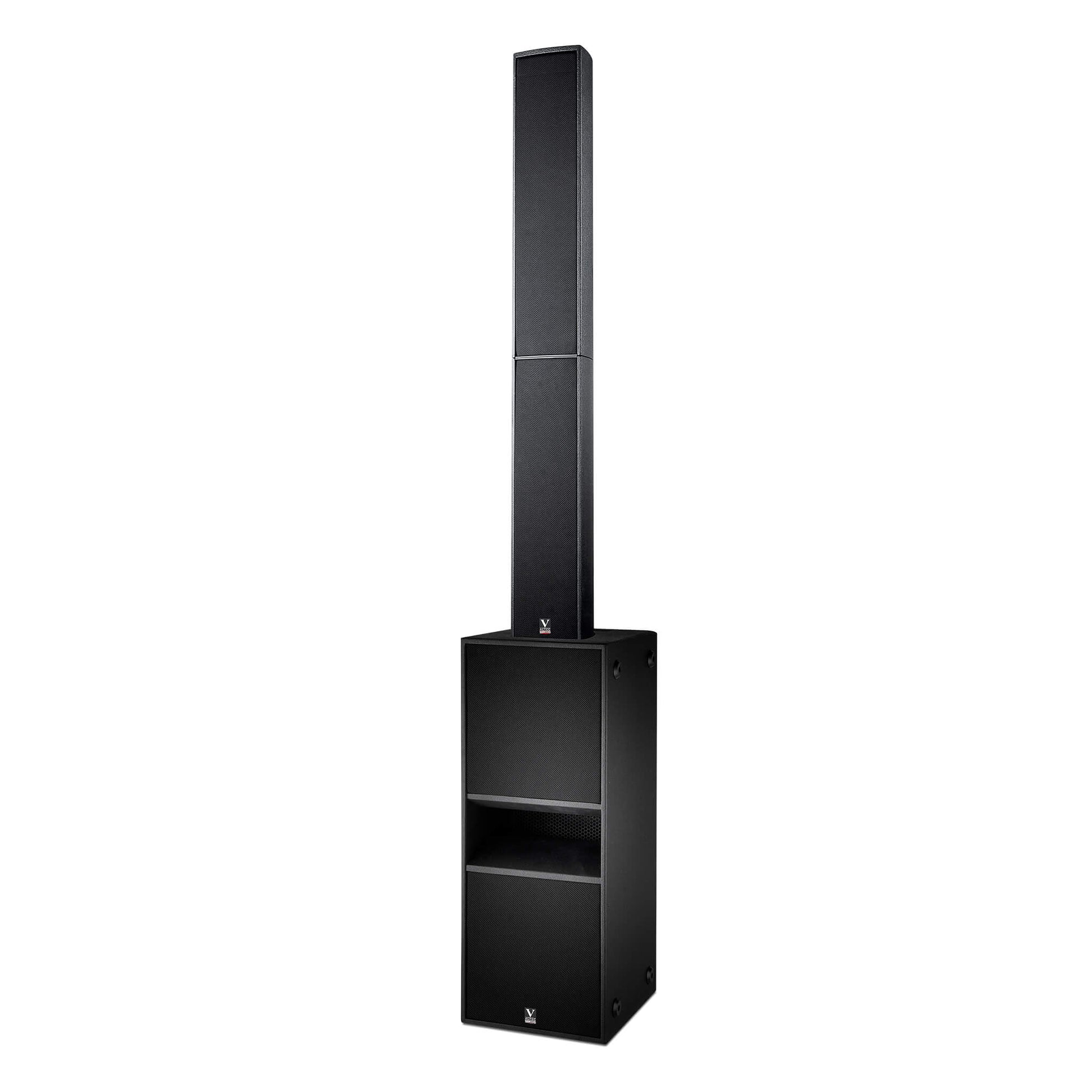

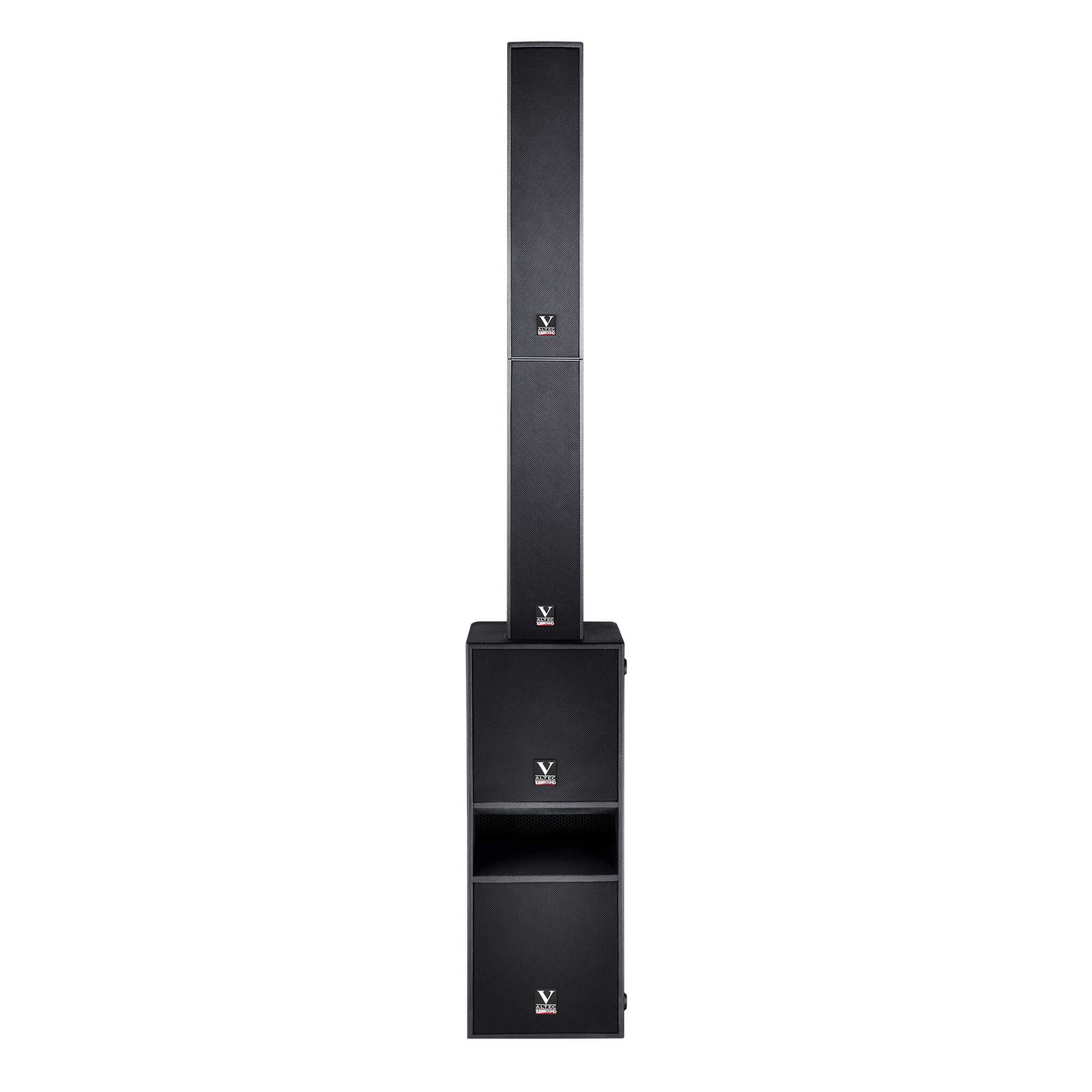

Coluna de som combinada VM-5 + VM-212: 5 polegadas lineares + coluna de som com dois subwoofers de 12 polegadas

Descrição

VM5
Potência Nominal: 700W
Potência de Pico: 1200W
Impedância: 6Ω
Sensibilidade de Entrada (@1W/1m): 96dB
SPL Máximo: 127dB
SPL de Pico: 129dB
Ângulo de Cobertura Horizontal: 120°
Ângulo de Cobertura Vertical: 15°
Alta Frequência: 3 x 44mm (1.75in) bobina de voz Neodímio
Baixa Frequência: 6 x 5in, 38mm (1.5in) bobina de voz Neodímio
Peso: 20KG

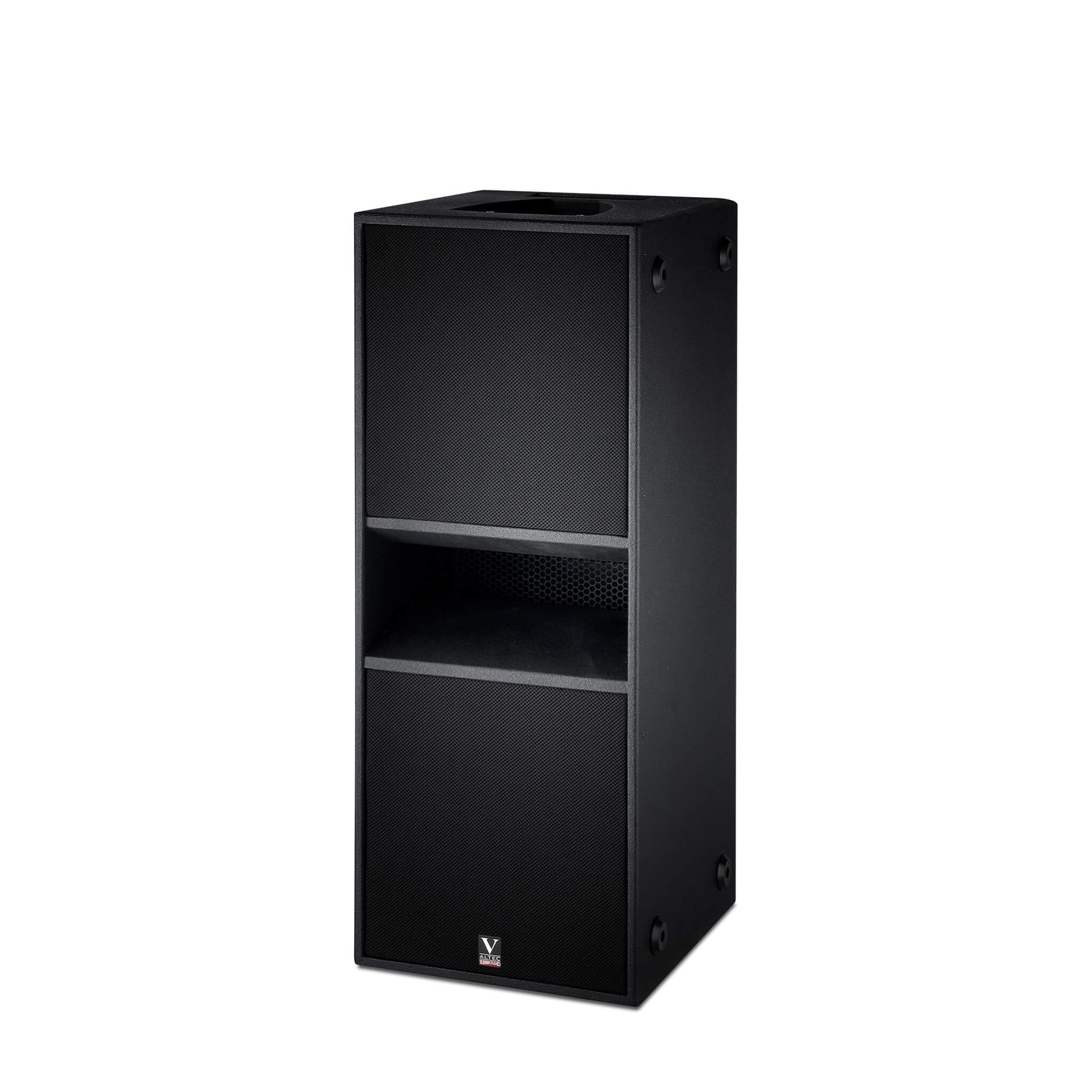

VM-212
Dimensões do Produto (L×P×A): 163.5 x 184 x 1313mm
Potência Nominal: 700W
Potência de Pico: 1400W
Impedância: 4Ω
Sensibilidade de Entrada (@1W/1m): 98dB
SPL Máximo: 128dB
SPL de Pico: 131dB
Baixa Frequência: 2 x 12in, 75mm (3in) bobina de voz Neodímio
Dimensões do Produto (L×P×A): 334 x 349.5 x 849mm
VM-5A e VM-5B devem ser usados em conjunto para formar um sistema VM-5.

Ver detalhes completos

describe

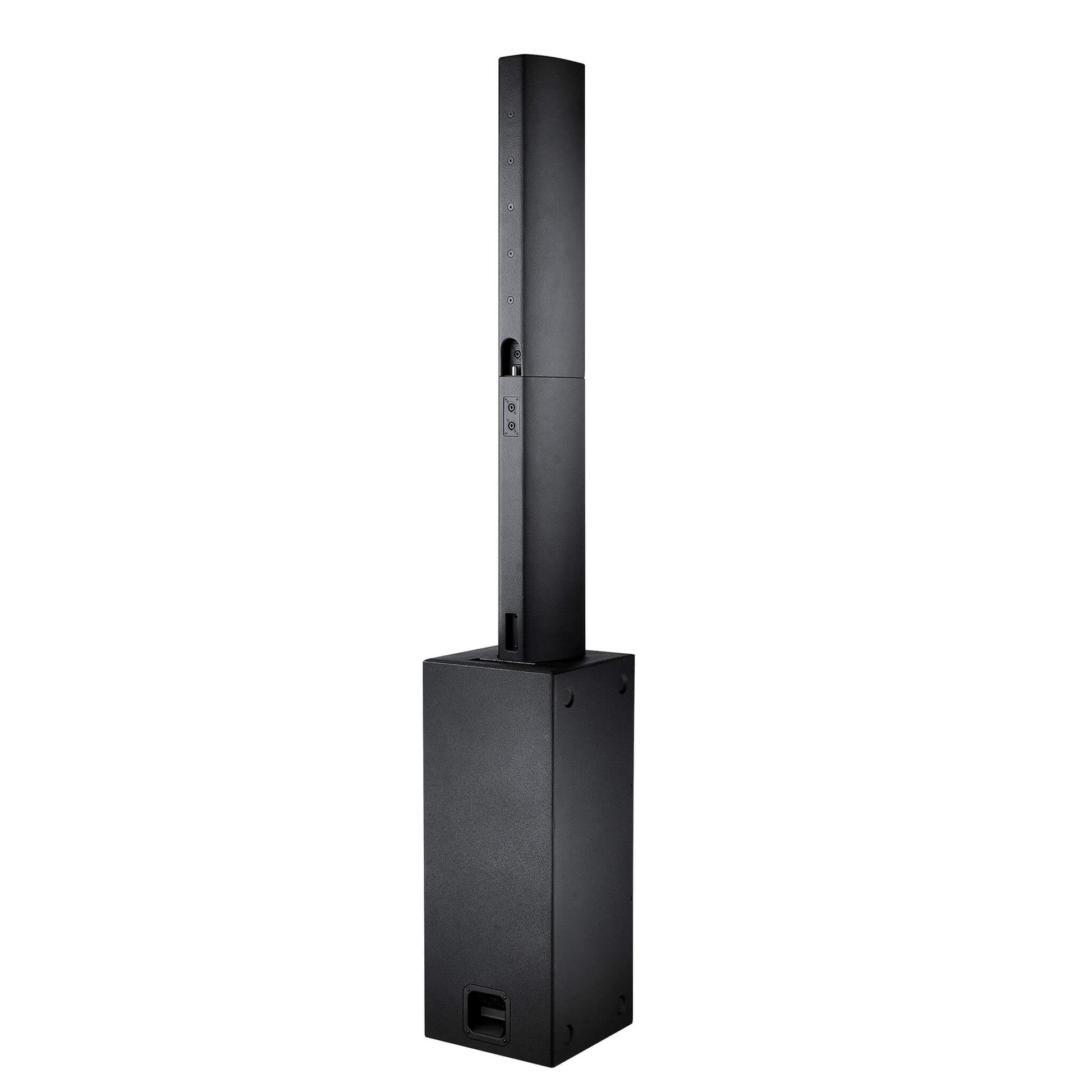

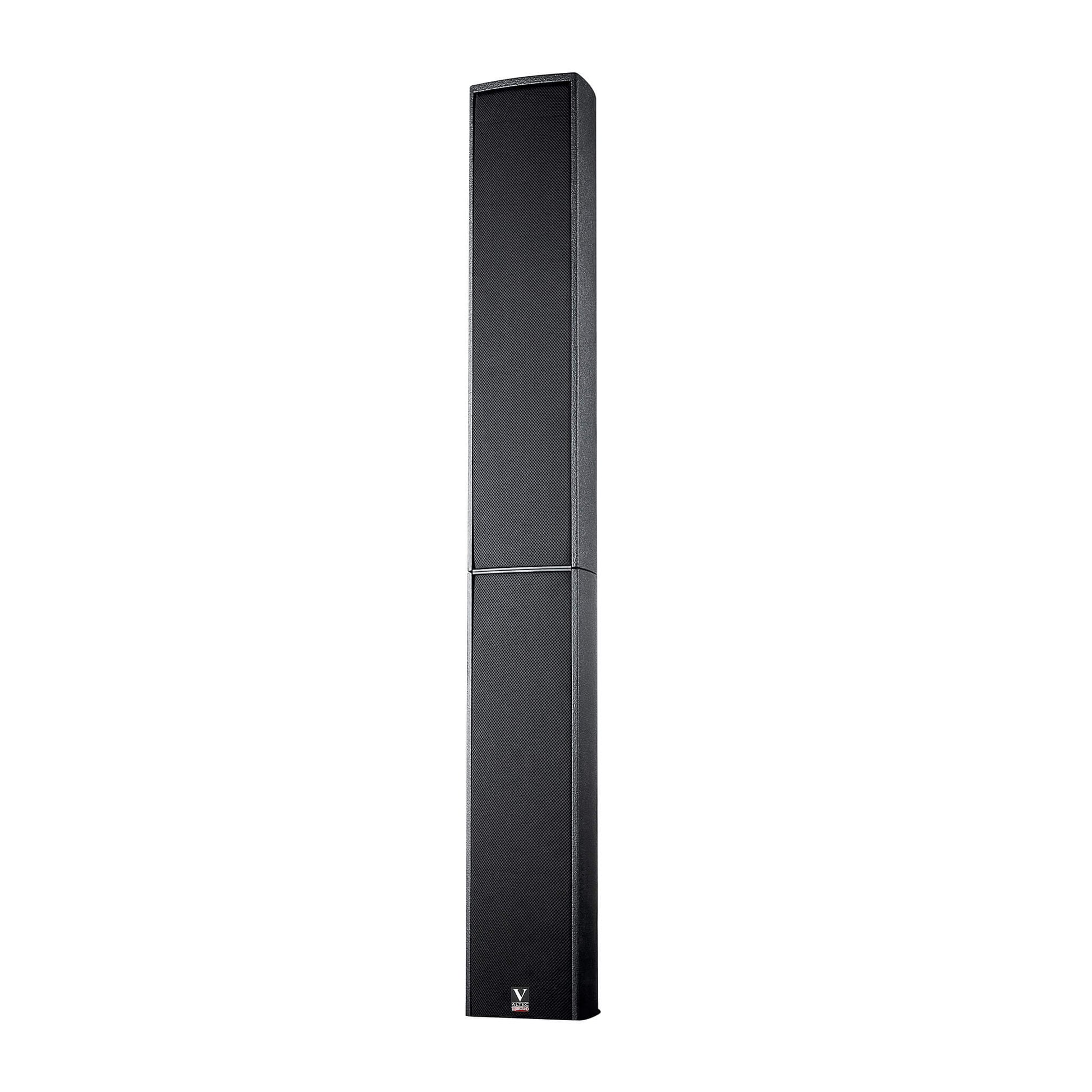

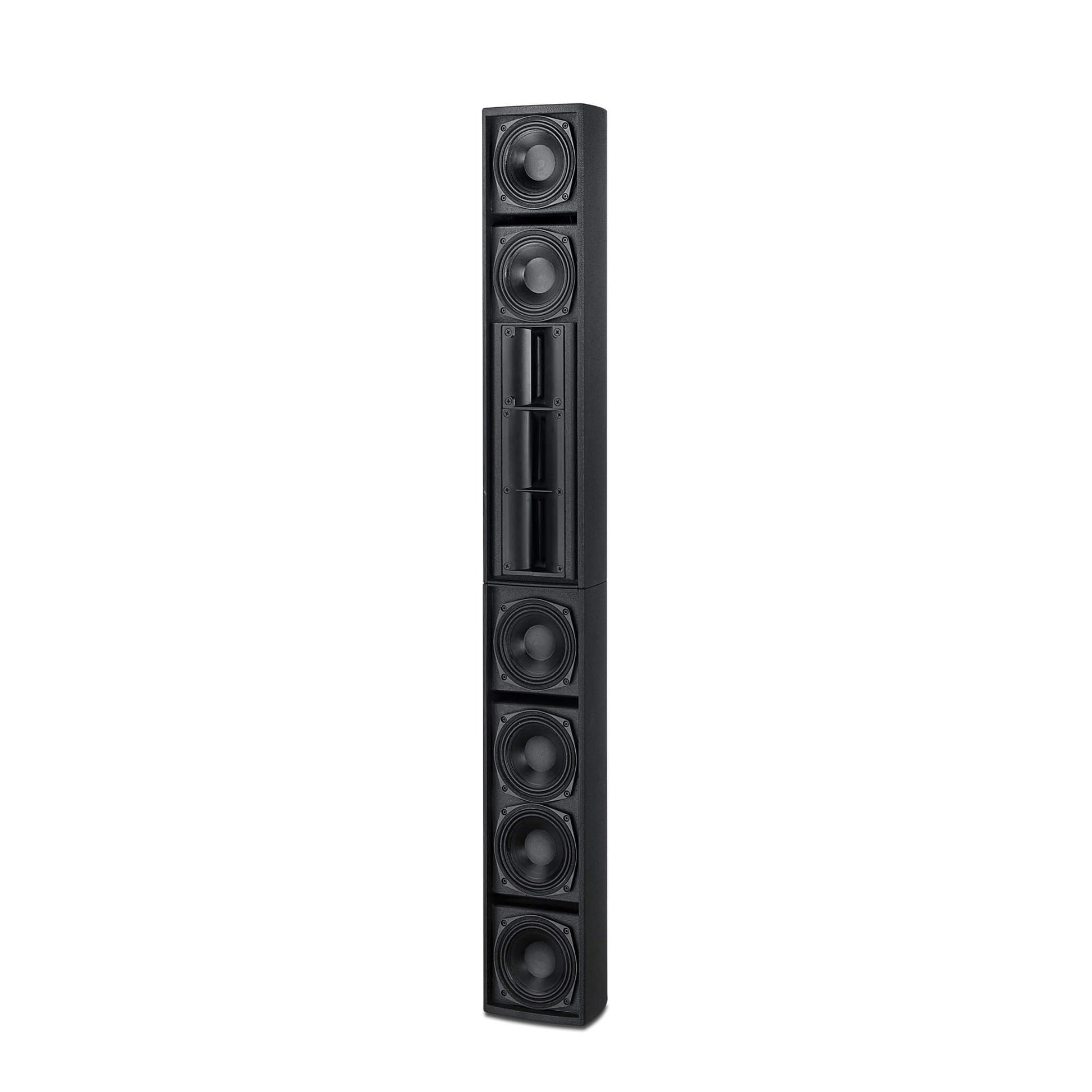

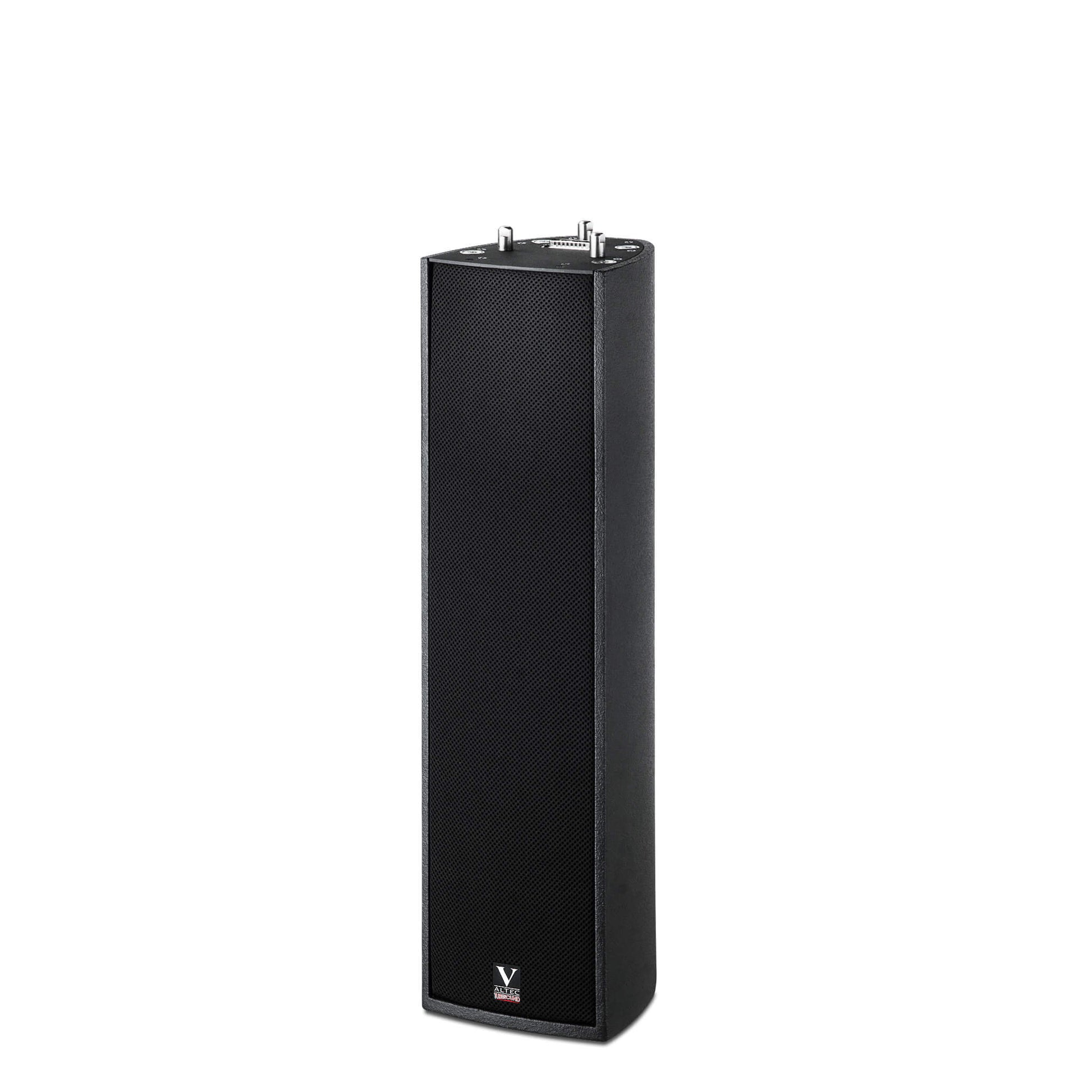

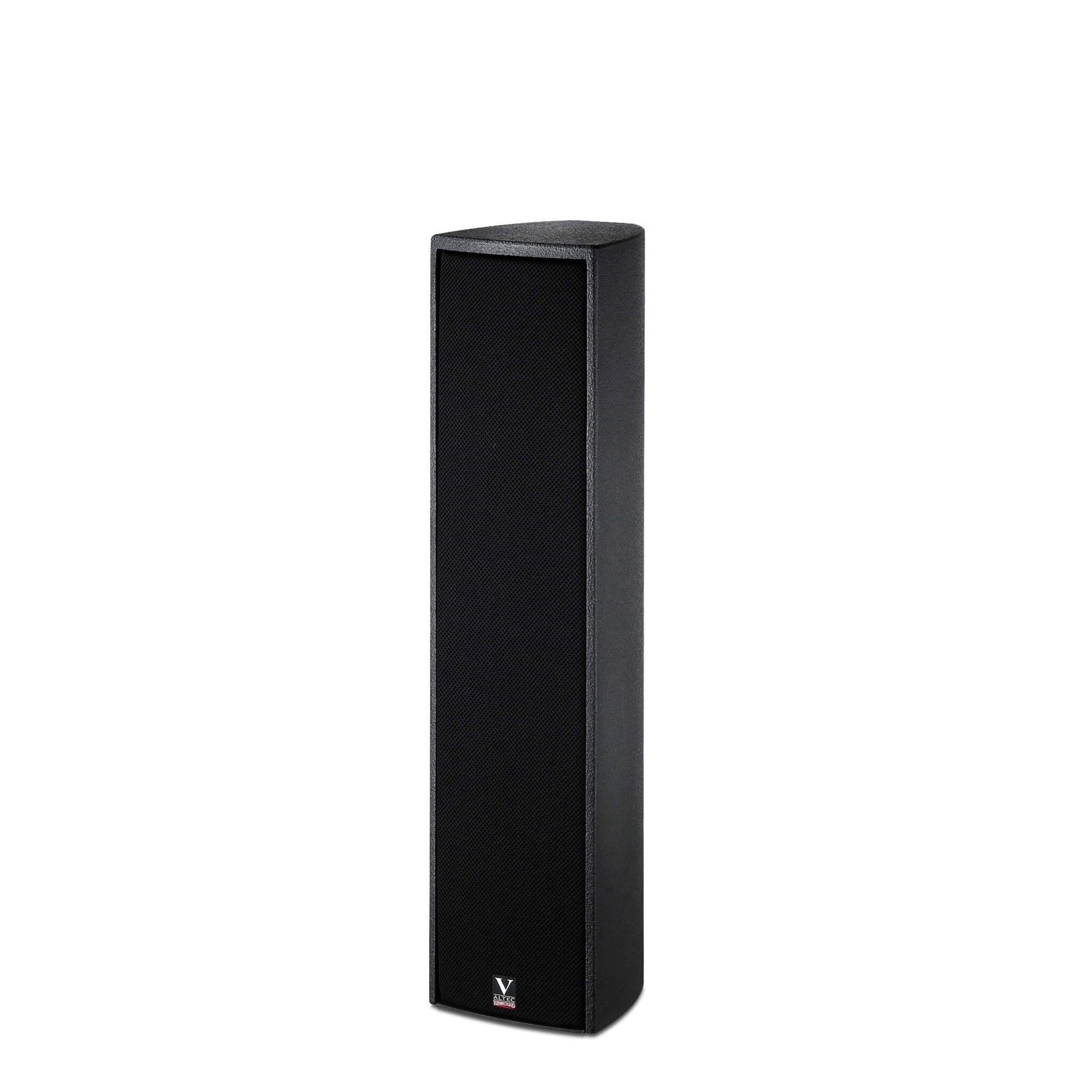

The VM-5 column speaker system consists of 3 × 44mm 1.75-inch rubidium magnet tweeters and 6 × 38mm 5-inch neodymium magnet woofers, paired with a dual 12-inch 75mm voice coil subwoofer enclosure, designed for easy transport and space-saving. A quick-installation kit is integrated into the base of the column, enabling rapid on-site setup and improving efficiency;

The cabinet is constructed from birch plywood. The rear and side panels are molded as a single curved unit to enhance rigidity, while the curved rear panel provides better acoustic reflection and reduces parallel reflections.

The tweeters and woofers feature neodymium magnets and aluminum frames, providing more stable support for high power output.

Two built-in 12-inch low-frequency drivers deliver high-fidelity low-frequency response below 40 Hz.

Its quick deployment and disassembly features make it ideal for temporary performances such as stage plays and concerts.

It supports wall-mounting and flying installations and can be quickly paired with main speakers or subwoofers via the system.

System Data
Rated Power: 700W
Peak Power: 1200W
Frequency Response (±3 dB): 130–18 kHz
Frequency Response Range (-10 dB): 120–19 kHz
Impedance: 6 Ω
Input Sensitivity (@1W/1m): 96 dB
Maximum Sound Pressure Level: 127 dB
Peak Sound Pressure Level: 129 dB
Horizontal Coverage Angle: 120°
Vertical Coverage Angle: 15°
High Frequency: 3 x 44 mm (1.75 in) voice coil, Neodymium
Low Frequency: 6 x 5 in, 38 mm (1.5 in) voice coil, Neodymium
Crossover Frequency: 3 kHz
Connectors: 2x NL4 SpeakOn 1x NL4 SpeakOn (spare)
Weight: 20 kg
Dimensions (W×D×H): 163.5×184×1313 mm
VM-5A & VM-5B must be used in combination to form the VM-5 system
Rated Power: 700 W
Peak Power: 1400W
Frequency Response (±3 dB): 45–200 Hz
Frequency Response Range (-10 dB): 50–220 Hz
Impedance: 4 Ω
Sensitivity (@1W/1m): 98 dB
Maximum Sound Pressure Level: 128 dB
Peak Sound Pressure Level: 131 dB
Low-frequency driver: 2x 12-inch, 75mm (3-inch) voice coil, Neodymium
Crossover frequency: 30 Hz–12 Hz
Connectors: 2x NL4 Speakon
Net weight/Gross weight: 29 kg
Dimensions (W×D×H): 334×349.5×849 mm
