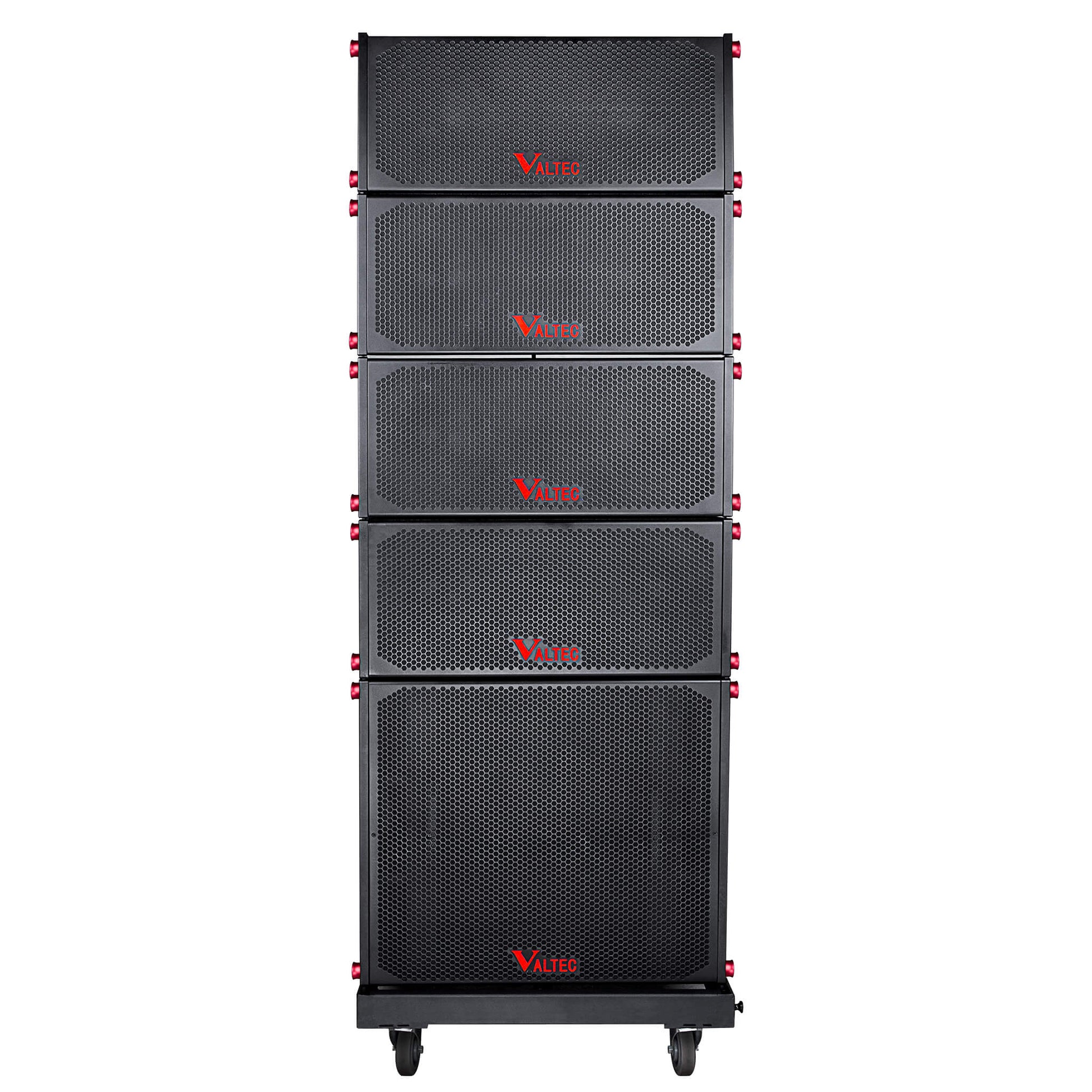

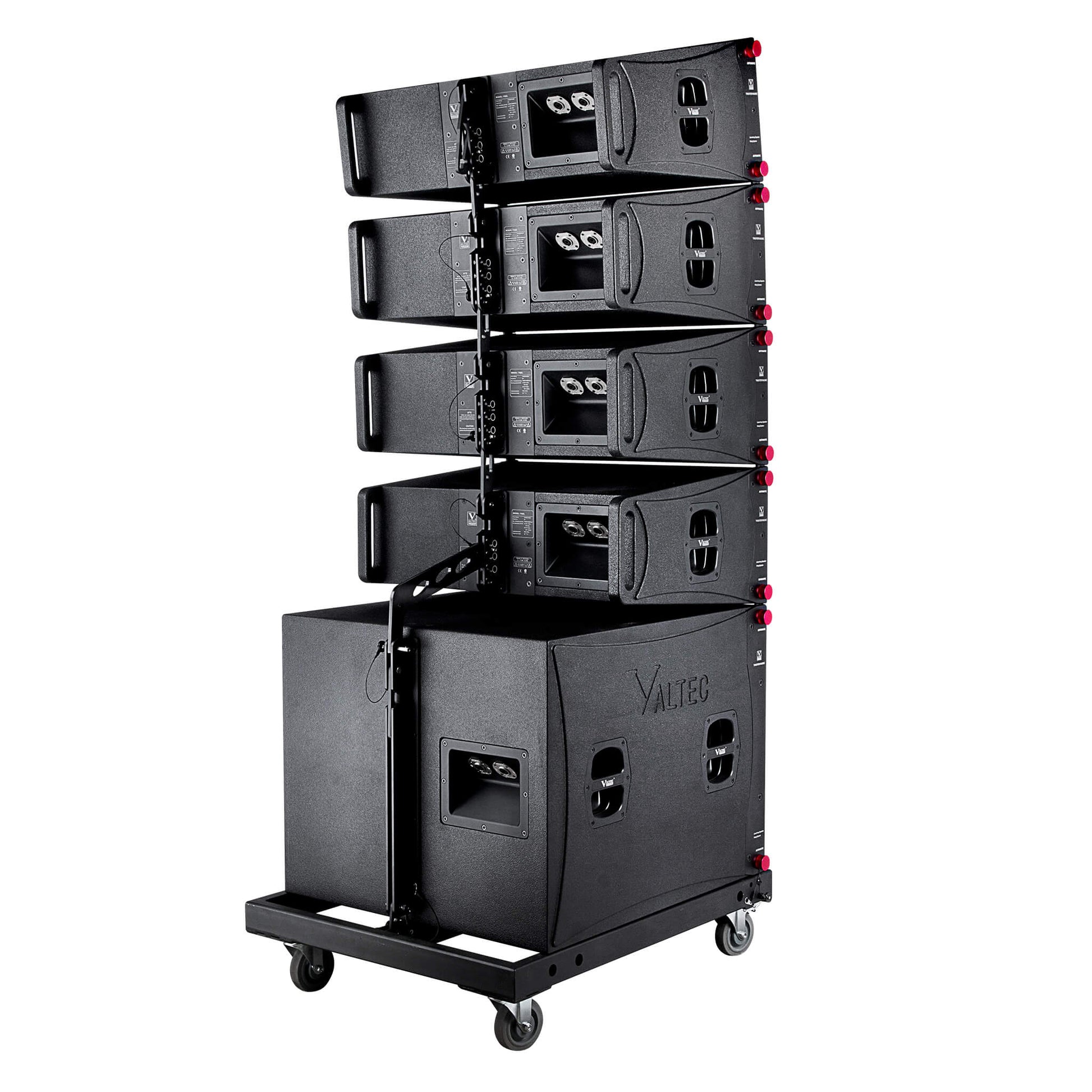

Coluna de Áudio VQ10L, Dupla de 10 Polegadas, Impermeável, Tipo "Line Array" para Concertos ao Ar Livre

2-way vertical linear source array loudspeakers

Descrição

Tecnologia patenteada: Tecnologia de Carregamento de Plug de Fase de Baixo
Resposta de Frequência: 45 Hz – 20 kHz (-10 dB)
Potência do Altifalante: HF 80 W / LF 600 W
Pico de Potência do Altifalante: HF 160 W / LF 1200 W
Sensibilidade: LF: 99 dB ± 2 dB; HF: 108 dB ± 2 dB
Nível Máximo de Pressão Sonora: 143 dB
Cobertura Horizontal: 110°
Dimensões do Driver: HF: 1 x tweeter de compressão de neodímio de 3 polegadas
LF: 2 x woofers de 10 polegadas (bobina de voz de 75mm)
Impedância do Driver: LF: 2 x 16 Ω, HF: 8 Ω
Dimensões da Caixa: L730 x A325 x P541 mm
Peso da Caixa: 36 kg

Ver detalhes completos

describe

The Valtec Tubesound VQ® series compact line array system combines next-generation neodymium magnet drivers, BASS PHASE TYPE™ low-frequency phase plug technology (patented bass phase plug mounting technology), and an optimized acoustic cabinet, among other mature and reliable line array technologies. Its creation is significant, redefining our understanding of line array technology. Driven by an external high-power amplifier, and supplemented by a DSP line array controller and software, it efficiently and quickly achieves smooth, linear high sound pressure levels.

System Data
Speaker Type: Two-way vertical linear sound source array speaker
Patented Technology: Bass phase plug loading technology
Frequency Response: 45 Hz – 20 kHz (-10 dB)
Speaker Power: HF 80 W / LF 600 W
Speaker Peak Power: HF 160 W / LF 1200 W
Sensitivity: LF: 99 dB ± 2 dB; HF: 108 dB ± 2 dB
Maximum Sound Pressure Level: 143 dB
Vertical Coverage: Depends on the number of speakers and line array curvature
Speaker Angle Adjustment: 0.25, 1, 2, 3, 4, 5, 7.5, or 10°
Horizontal Coverage: 110°
Driver Dimensions: HF: 1 x 3-inch neodymium compression tweeter
LF: 2 x 10-inch woofers (75mm voice coil)
Driver Impedance: LF: 2 x 16 Ω, HF: 8 Ω
Input Connection: 4-pin PA-COM®
LINK Connection: 4-pin PA-COM®
Connector: LP28 waterproof aviation connector, 4-pin
Wiring Configuration: 1-2+…HF, 3-4+…LF
Material: 18mm birch plywood
Finish: Black polyurea paint
Grille: Front grille lined with acoustic mesh
Cabinet Dimensions: W 730 x H 325 x D 541 mm
Cabinet Weight: 36 kg
