Colunas VQ12L Duplas de 12 Polegadas de Matriz Linear à Prova de Água

Descrição

Tecnologia Patenteada: Tecnologia de Carregamento de Fase de Graves
Largura de Banda: 40 Hz - 20 kHz (-10 dB)
Potência do Altifalante: HF 80W/LF 800W
Níveis de Sensibilidade: LF: 97dB±2dB HF: 108dB±2dB
SPL Máximo: 143 dB
Tamanho do Driver: HF: 1 x tweeter de compressão de íman de neodímio de 3 polegadas
LF: 2 x woofers de 12 polegadas (bobina de voz de 75 mm)
Impedância do Driver: LF: 2 x 16 Ω, HF: 8 Ω
Conectividade: 1-2+…HF, 3-4+…LF
Dimensões da Caixa: L 846 x A 363 x P 580 mm
Peso da Caixa: 42 Kg

Ver detalhes completos

describe

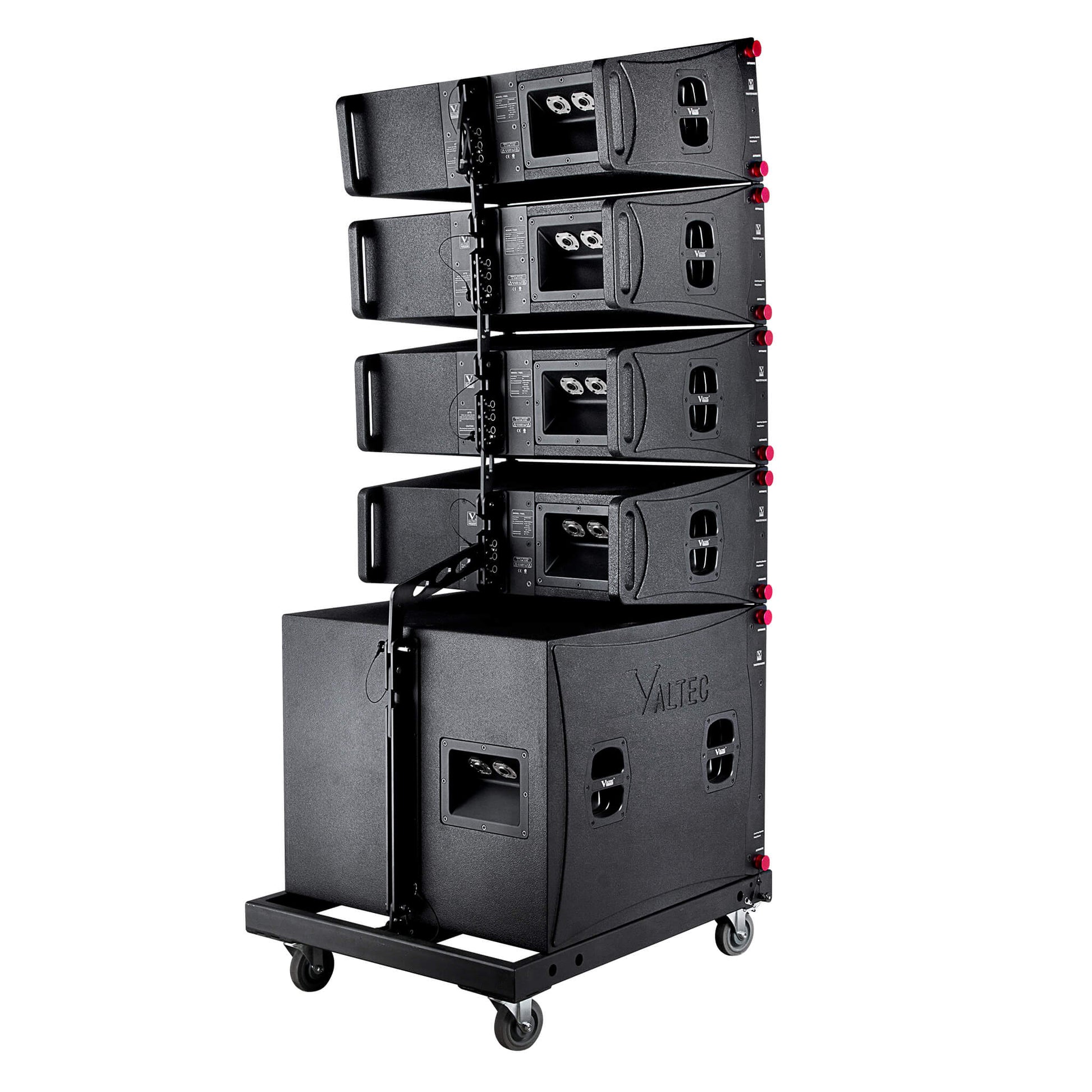

The Valtec Tubesound VQ® series compact line array system combines next-generation neodymium magnet drivers, BASS PHASE TYPE™ low-frequency phase plug technology (patented bass phase plug mounting technology), and an optimized acoustic cabinet, among other mature and reliable line array technologies. Its creation is significant, redefining our understanding of line array technology. Driven by an external high-power amplifier, and supplemented by a DSP line array controller and software, it efficiently and quickly achieves smooth, linear high sound pressure levels.

System Data
Speaker Type: Two-way vertical line array speaker
Patented Technology: Bass phase plug loading technology
Frequency Response: 40 Hz – 20 kHz (-10 dB)
Speaker Power: HF 80 W / LF 800 W
Sensitivity: LF: 97 dB ± 2 dB; HF: 108 dB ± 2 dB
Maximum Sound Pressure Level: 143 dB
Vertical Coverage: Depends on the number of speakers and line array curvature
Vertical Angle Adjustment: 0.25, 1, 2, 3, 4, 5, 7.5, or 10°
Horizontal Coverage: 110°
Driver Dimensions: HF: 1 x 3-inch neodymium compression tweeter
LF: 2 x 12-inch woofers (75mm voice coil)
Driver Impedance: LF: 2 x 16 Ω, HF: 8 Ω
Input Connection: 4-pin PA-COM®
LINK Connection: 4-pin PA-COM®
Connector: LP28 waterproof aviation connector, 4-pin
Connection Method: 1-2+…HF, 3-4+…LF
Material: 18mm birch plywood
Finish: Black polyurea paint
Grille: Front grille lined with acoustic mesh
Cabinet Dimensions: W 846 x H 363 x D 580 mm
Cabinet Weight: 42 kg
