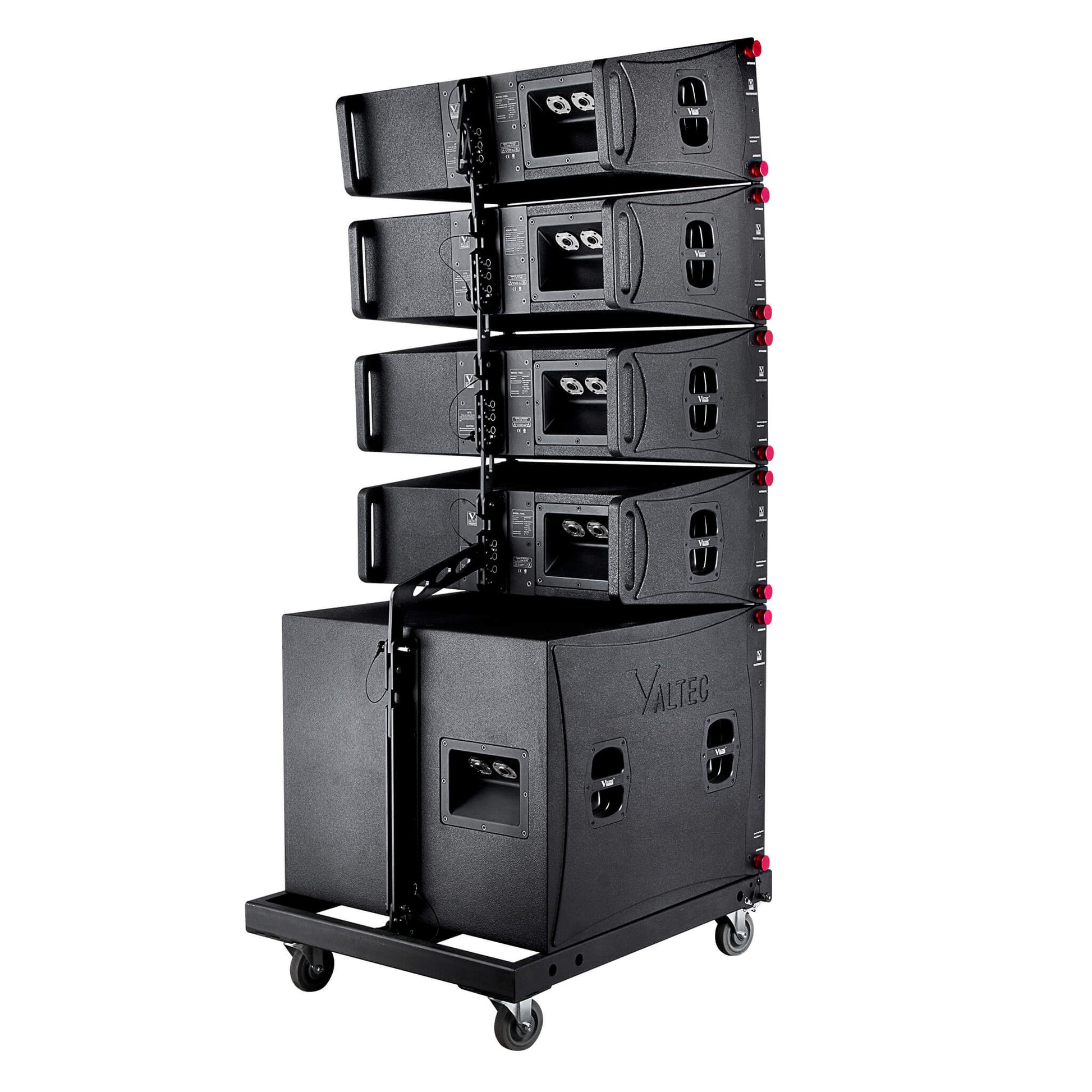

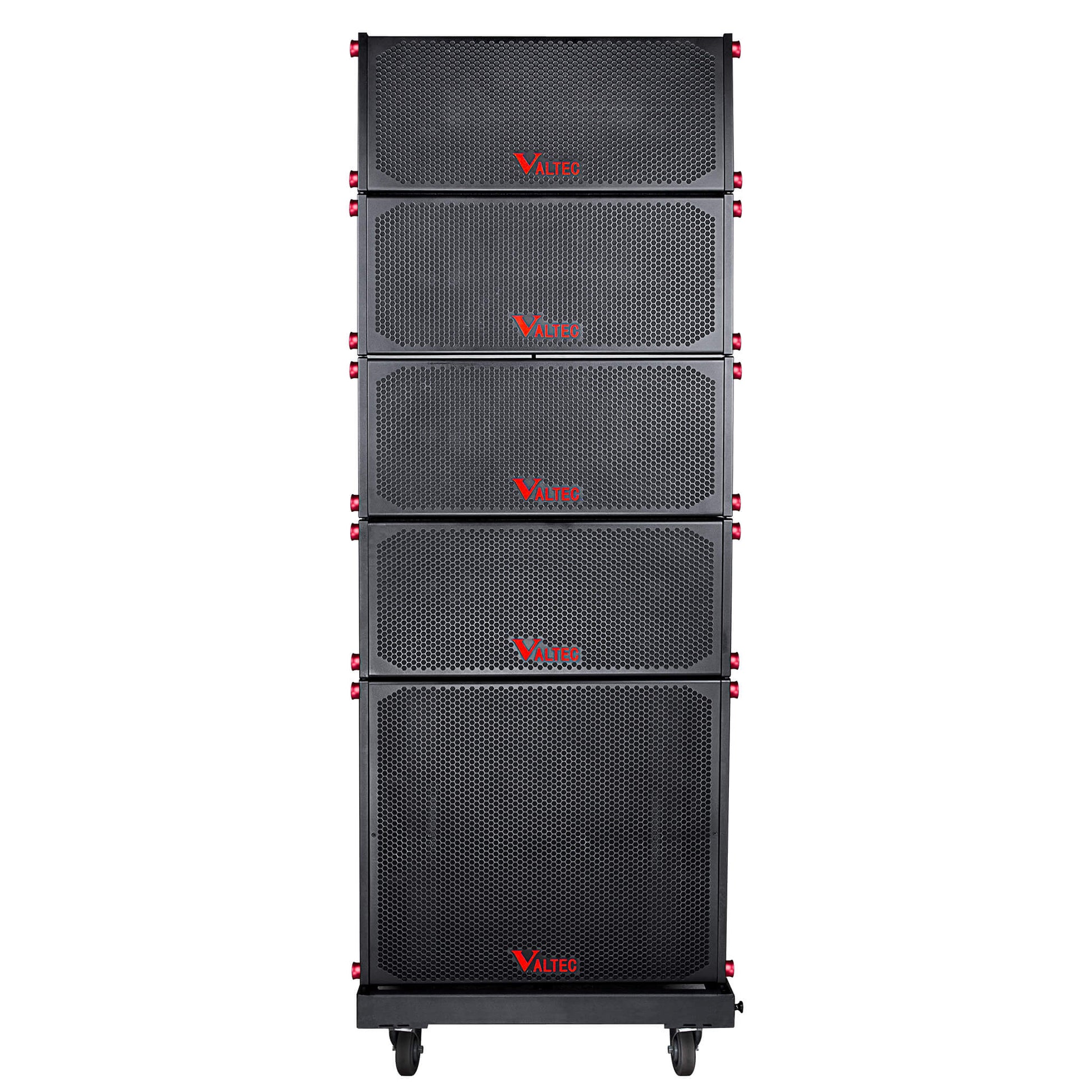

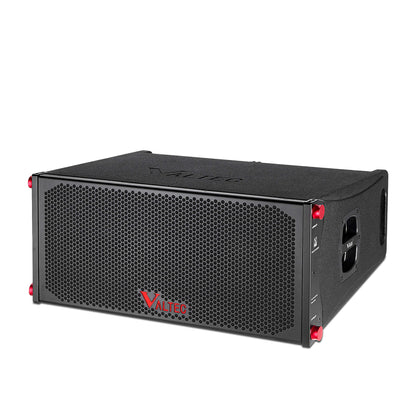

VQ8L Altifalante Line Array Duplo de 8 Polegadas à Prova de Água para Concertos ao Ar Livre

2-way vertical linear source array loudspeakers

Descrição

Tecnologia Patenteada: Tecnologia de Carregamento de Plugue de Fase de Graves
Resposta de Frequência: 50 Hz – 20 kHz (-10 dB)
Potência Nominal: HF 80 W / LF 500 W
Potência de Pico: HF 160 W / LF 1000 W
Sensibilidade: LF: 99 dB ± 2 dB / HF: 106 dB ± 2 dB
Nível Máximo de Pressão Sonora: 141 dB
Cobertura Horizontal: 110°
Dimensões do Driver: HF: 1 x tweeter de compressão de neodímio de 3 polegadas
LF: 2 x woofers de 8 polegadas (bobina de voz de 65 mm)
Impedância do Driver: LF: 2 x 16 Ω, HF: 8 Ω
Dimensões da Caixa: L 690 x A 288 x P 535 mm
Peso da Caixa: 32 kg

Ver detalhes completos

describe

The Valtec Tubesound VQ® series compact line array system combines next-generation neodymium magnet drivers, BASS PHASE TYPE™ low-frequency phase plug technology (patented bass phase plug mounting technology), and an optimized acoustic cabinet, among other mature and reliable line array technologies. Its creation is significant, redefining our understanding of line array technology. Driven by an external high-power amplifier, and supplemented by a DSP line array controller and software, it efficiently and quickly achieves smooth, linear high sound pressure levels.

System Data
Speaker Type: Two-way vertical line array speaker
Patented Technology: Bass phase plug loading technology
Frequency Response: 50 Hz – 20 kHz (-10 dB)
Speaker Power: HF 80 W / LF 500 W
Peak Power: HF 160 W / LF 1000 W
Sensitivity: LF: 99 dB ± 2 dB; HF: 106 dB ± 2 dB
Maximum Sound Pressure Level: 141 dB
Vertical Coverage: Depends on the number of speakers and line array curvature
Vertical Angle Adjustment: 0.25, 1, 2, 3, 4, 5, 7.5, or 10°
Horizontal Coverage: 110°
Driver Dimensions: HF: 1 x 3-inch neodymium compression tweeter
LF: 2 x 8-inch woofers (65mm voice coil)
Driver Impedance: LF: 2 x 16 Ω, HF: 8 Ω
Input Connection: 4-pin PA-COM®
LINK Connection: 4-pin PA-COM®
Connector: LP28 waterproof aviation connector (4-pin)
Wiring Configuration: 1-2+…HF, 3-4+…LF
Material: 18mm birch plywood
Finish: Black polyurea paint
Grille: Front grille lined with acoustic mesh
Cabinet Dimensions: W 690 x H 288 x D 535 mm
Cabinet Weight: 32 kg
