Collection: Performance Sound Column Series

VM5
Rated Power: 700W
Peak Power: 1200W
Impedance: 6Ω
Input Sensitivity (@1W/1m): 96dB
Maximum SPL: 127dB
Peak SPL: 129dB
Horizontal Coverage Angle: 120°
Vertical Coverage Angle: 15°
High Frequency: 3 x 44mm (1.75in) voice coil Neodymium
Low Frequency: 6 x 5in, 38mm (1.5in) voice coil Neodymium
Weight: 20KG
VM-212
Product Dimensions (W×D×H): 163.5 x 184 x 1313mm
Rated Power: 700W
Peak Power: 1400W
Impedance: 4Ω
Input Sensitivity (@1W/1m): 98dB
Maximum SPL: 128dB
Peak SPL: 131dB
Low Frequency: 2 x 12in, 75mm (3in) voice coil Neodymium
Product Dimensions (W×D×H): 334 x 349.5 x 849mm
VM-5A & VM-5B must be used together to form a VM-5 system.

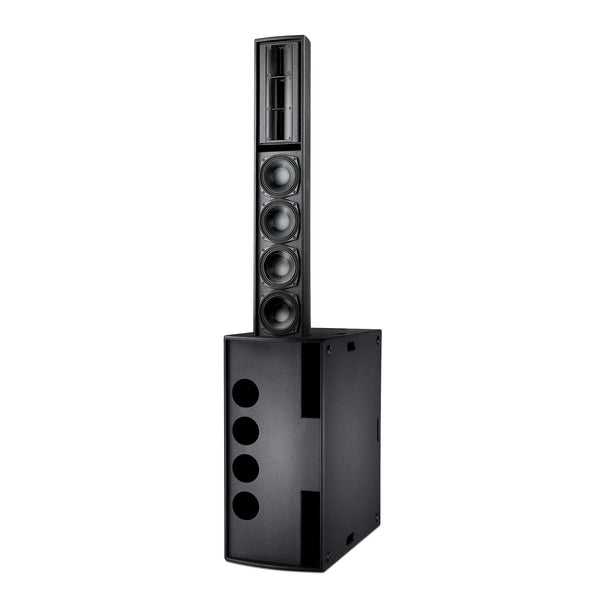

VM6
Rated Power: 700W
Peak Power: 1200W
Frequency Response (± 3 dB): 120-18kHz
Frequency Range (-10dB): 100-19kHz
Maximum SPL: 127dB
Peak SPL: 129dB
High Frequency: 3 x 44mm (1.75in) voice coil Neodymium
Low Frequency: 4 x 6.5in, 38mm (1.5in) voice coil Neodymium
Net Weight/Gross Weight: 16.5KG
Product Dimensions (W×D×H): 196X225X1124.
VM-118
Rated Power: 1000W
Peak Power: 20...Peak Power: 1200W
Frequency Range (-10dB): 100-19kHz
Maximum SPL: 127dB
Peak SPL: 129dB
High Frequency: 3 x 44mm (1.75in) voice coil Neodymium
Low Frequency: 4 x 6.5in, 38mm ( Frequency response (-10dB): 40-150Hz Impedance: 8Ω Input sensitivity (@1W/1m): 98dB Maximum SPL: 129dB Peak SPL: 132dB Low frequency: 1 x 18in 100mm (4in) voice coil Neodymium Net weight/gross weight: 50KG Product dimensions (W×D×H): 379X776X840

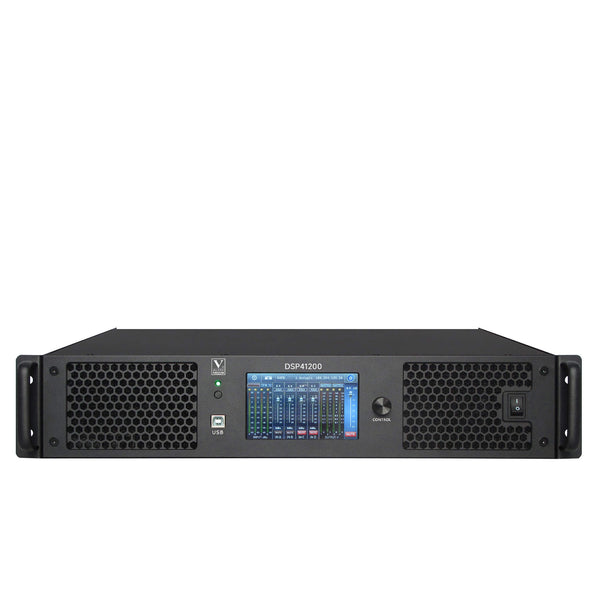

8 Ω stereoscopic power: 2X1250W
4 Ω stereo power: 2X2500W
Input connector: XLR female
Input impedance: 20K Ω balanced
Input sensitivity: 1.22V
Input common state suppression ratio:>80dB
Output connector: Speakon socket
USB interface: parameter control achieved through PC software operation
Network connection output socket: Connect to the next amplifier network input socket to achieve online operation of multiple amplifiers
Signal to noise ratio:>112dB
Damping coefficient:>1000 @ 8 Ω
Total harmonic distortion:<0.1% (20Hz-20kHz 1W)
Frequency response: 20Hz-34KHz (+0/-0.3dB, 1W/8 Ω)
Level adjustment: Front potentiometer, from -60dB to 0dB
Cooling method: infinitely variable speed fan, airflow from front to back
Power amplifier protection methods: short circuit, open circuit, DC voltage, overheating, overvoltage, RF, ultra-low frequency protection
Power specifications: AC voltage 180-240V (90V-120VAC) 50-60Hz
Chassis size (height * width * length): 88mmX483mmX438mm
Packaging dimensions (height * width * length): 155mm x 600mm x 550mm
Net weight: 12kg
Gross weight: 15.1kg

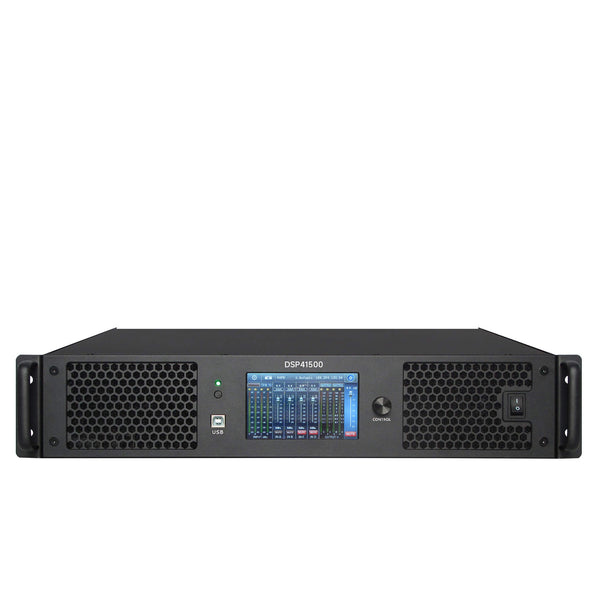

8 Ω stereo 21212 power: 2X1500W
4 Ω stereo power: 2X3000W
Input connector: XLR female
Input impedance: 20K Ω balanced
Input sensitivity: 1.22V
Input common state suppression ratio:>80dB
Output connector: Speakon socket
USB interface: parameter control achieved through PC software operation
Network connection output socket: Connect to the next amplifier network input socket to achieve online operation of multiple amplifiers
Signal to noise ratio:>112dB
Damping coefficient:>1000 @ 8 Ω
Total harmonic distortion:<0.1% (20Hz-20kHz 1W)
Frequency response: 20Hz-34KHz (+0/-0.3dB, 1W/8 Ω)
Level adjustment: Front potentiometer, from -60dB to 0dB
Cooling method: infinitely variable speed fan, airflow from front to back
Power amplifier protection methods: short circuit, open circuit, DC voltage, overheating, overvoltage, RF, ultra-low frequency protection
Power specifications: AC voltage 180-240V (90V-120VAC) 50-60Hz
Chassis size (height * width * length): 88mmX483mmX438mm
Packaging dimensions (height * width * length): 155mm x 600mm x 550mm
Net weight: 12kg
Gross weight: 15.1kg
