Collection: VQ Waterproof/All-Weather Waterproof Linear Array Series

Patented Technology: Bass Phase Plug Loading Technology
Available Bandwidth: 40 Hz - 20 kHz (-10 dB)
Speaker Power: HF 80W/LF 800W
Sensitivity Levels: LF: 97dB±2dB HF: 108dB±2dB
Maximum SPL: 143 dB
Driver Size: HF: 1 x 3-inch neodymium magnet compression tweeter
LF: 2 x 12-inch woofers (75mm voice coil)
Driver Impedance: LF: 2 x 16 Ω, HF: 8 Ω
Cabinet Dimensions: W 846 x H 363 x D 580 mm
Cabinet Weight: 42 Kg

Patented Technology: Bass Phase Plug Loading Technology
Available Bandwidth: 45 Hz - 20 kHz (-10 dB)Speaker Power: HF 80W/LF 600W
Speaker Peak Power: HF 160W/LF 1200W
Sensitivity Levels: LF: 99dB±2dB HF: 108dB±2dB
Maximum SPL: 143 dB
Driver Size: HF: 1 x 3-inch neodymium magnet compression tweeter
LF: 2 x 10-inch woofers (75mm voice coil)
Driver Impedance: LF: 2 x 16 Ω, HF: 8 Ω
Cabinet Dimensions: W 730 x H 325 x D 541 mm
Cabinet Weight: 36 Kg

Patented Technology: Bass Phase Plug Loading Technology
Frequency Response: 50 Hz – 20 kHz (-10 dB)
Speaker Power: HF 80W / LF 500W
Speaker Peak Power: HF 160W / LF 1000W
Sensitivity: LF: 99 dB ± 2 dB; HF: 106 dB ± 2 dB
Maximum Sound Pressure Level: 141 dB
Driver Dimensions: HF: 1 x 3-inch neodymium compression tweeter
LF: 2 x 8-inch woofers (65mm voice coil)
Driver Impedance: LF: 2 x 16 Ω, HF: 8 Ω
Cabinet Dimensions: W 690 x H 288 x D 535 mm
Cabinet weight: 32 kg

Patented Technology: Bass Phase Plug Loading Technology
Bandwidth: 40 Hz - 20 kHz (-10 dB)
Speaker Power: HF 80W/LF 800W
Sensitivity Levels: LF: 97dB±2dB HF: 108dB±2dB
Maximum SPL: 143 dB
Driver Size: HF: 1 x 3-inch neodymium magnet compression tweeter
LF: 2 x 12-inch woofers (75mm voice coil)
Driver Impedance: LF: 2 x 16 Ω, HF: 8 Ω
Connectivity: 1-2+…HF, 3-4+…LF
Cabinet Dimensions: W 846 x H 363 x D 580 mm
Cabinet Weight: 42 Kg

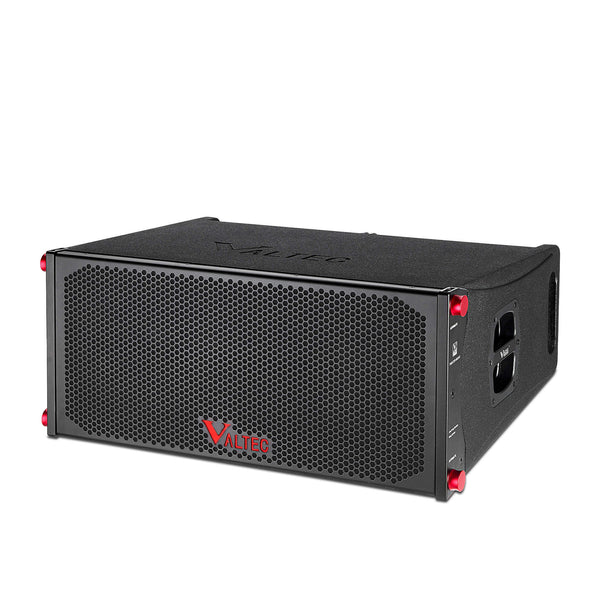

Patented Technology: Bass Phase Plug Loading Technology
Frequency Response: 45 Hz – 20 kHz (-10 dB)
Speaker Power: HF 80 W / LF 600 W
Speaker Peak Power: HF 160 W / LF 1200 W
Sensitivity: LF: 99 dB ± 2 dB; HF: 108 dB ± 2 dB
Maximum Sound Pressure Level: 143 dB
Horizontal Coverage: 110°
Driver Dimensions: HF: 1 x 3-inch neodymium compression tweeter
 LF: 2 x 10-inch woofers (75mm voice coil)
Driver Impedance: LF: 2 x 16 Ω, HF: 8 Ω
 Cabinet Dimensions: W730 x H325 x D541 mm
Cabinet Weight: 36 kg

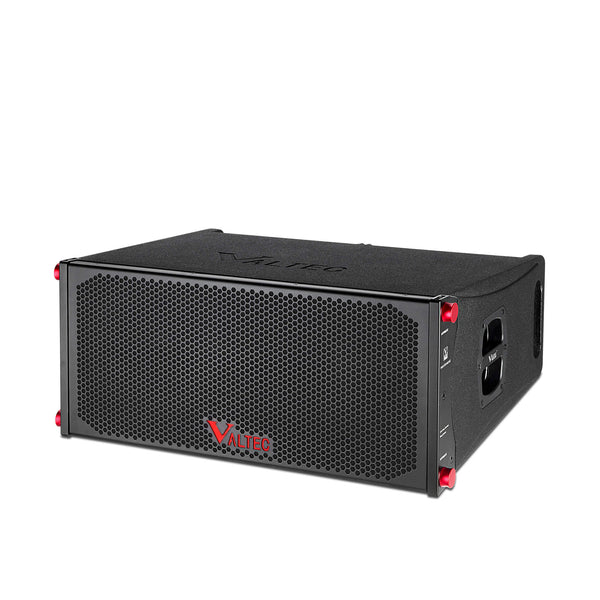

Patented Technology: Bass Phase Plug Loading Technology
Frequency Response: 50 Hz – 20 kHz (-10 dB)
Rated Power: HF 80 W / LF 500 W
Peak Power: HF 160 W / LF 1000 W
Sensitivity: LF: 99 dB ± 2 dB / HF: 106 dB ± 2 dB
Maximum Sound Pressure Level: 141 dB
Horizontal Coverage: 110°
Driver Dimensions: HF: 1 x 3-inch neodymium compression tweeter
LF: 2 x 8-inch woofers (65mm voice coil)
Driver Impedance: LF: 2 x 16 Ω, HF: 8 Ω
Cabinet Dimensions: W 690 x H 288 x D 535 mm
Cabinet Weight: 32 kg

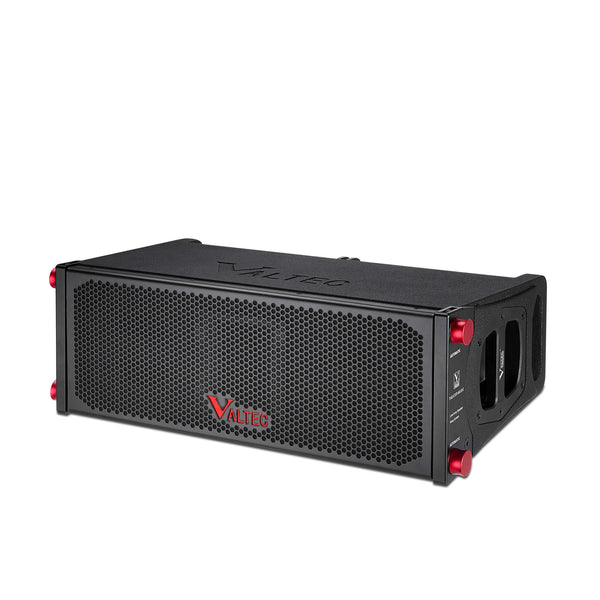

Speaker Power: HF50W/LF400W
Peak Power: HF100W/LF800W
Sensitivity Levels: LF: 97dB±2dB, HF: 103dB±2dB
Maximum SPL: 137 dB
Driver Size: HF: 1 x 1.75-inch neodymium magnet compression tweeter
LF: 2 x 6.5-inch woofers (56mm voice coil)
Driver Impedance: LF: 2 x 16 Ω, HF: 8 Ω
Horizontal Directivity: 120°
Cabinet Dimensions: W 596mm x H 216mm x D 326mm
Cabinet Weight: 15 Kg

Frequency Response: 40 Hz ~ 150 Hz (±3 dB) 30 Hz ~ 200 Hz (-10 dB)
Characteristic Sensitivity Level: 99 dB SPL
Maximum SPL: 133 dB±2 dB
Speaker Power: 800 W
Peak Power: 1600 W
Impedance: 8 ohms
Speaker Driver: 1 x 18" (100mm voice coil) woofer
Cabinet Dimensions: 730 mm (W) x 575 mm (H) x 752 mm (D)
Weight: 55 kg

Frequency Response: 30 Hz ~ 450 Hz (±3 dB) 30 Hz ~ 680 Hz (-10 dB)
Characteristic Sensitivity Level: 95 dB SPL
Maximum SPL: 127 dB±2 dB
Speaker Power: 600 W
Peak Speaker Power: 1200 W
Impedance: 8 ohms
Speaker Driver: 1 x 15" (75mm voice coil) woofer
Cabinet Dimensions: 596 mm (W) x 490 mm (H) x 592 mm (D)
Weight: 25 kg

Frequency Response: 40 Hz ~ 200 Hz (±3 dB) 30 Hz ~ 320 Hz (-10 dB)
Sensitivity Level: 100 dB SPL
Maximum SPL: 136 dB±2 dB
Speaker Power: 1000 W
Peak Power: 2000 W
Impedance: 4 ohms
Speaker Drivers: 2 x 15" (75mm voice coil) woofers
Cabinet Dimensions: W 690 x H 575 x D 754 mm
Weight: 60 kg

Frequency Response: 40 Hz ~ 200 Hz (±3 dB) 30 Hz ~ 320 Hz (-10 dB)
Nominal Directivity: Omnidirectional
Characteristic Sensitivity Level: 100 dB SPL
Maximum SPL: 136 dB±2 dB
Speaker Power: 1000 W
Speaker Peak Power: 2000 W
Impedance: 8 ohms
Speaker Drivers: 2 x 15" (75mm voice coil) woofers
Angle: Adjustable at 5°, 0°, -5°, -10°
Connectivity: NL4: 1+1-
Connectors: 2 x 4-pin WP4 cabinet mounts
Material: 15mm, 18mm birch plywood
Surface Finish: Black polyurea lacquer
Grate: Acoustic-permeable mesh overlaid on the front grille
Cabinet Dimensions: 730 mm (W) x 575 mm (H) x 754 mm (D)
Weight: 60 kg

Frequency Response: 28 Hz ~ 180 Hz (±3 dB) 26 Hz ~ 250 Hz (-10 dB)
Characteristic Sensitivity Level: 102 dB SPL
Maximum SPL: 138 dB±2 dB
Speaker Power: 1600 W
Peak Power: 3200 W
Impedance: 4 ohms
Speaker Drivers: 2 x 18" (100mm voice coil) woofers
Cabinet Dimensions: 846 mm (W) x 575 mm (H) x 801 mm (D)
Weight: 90 kg

Frequency Response: 28 Hz ~ 180 Hz (±3 dB) 26 Hz ~ 250 Hz (-10 dB)
Characteristic Sensitivity Level: 102 dB SPL
Maximum SPL: 138 dB±2 dB
Speaker Power: 1600 W
Peak Power: 3200 W
Impedance: 4 ohms
Speaker Drivers: 2 x 18" (100mm voice coil) woofers
Cabinet Dimensions: 846 mm (W) x 575 mm (H) x 801 mm (D)
Weight: 90 kg

Frequency Response: 40 Hz ~ 150 Hz (±3 dB) 30 Hz ~ 200 Hz (-10 dB)
Characteristic Sensitivity Level: 99 dB SPL
Maximum SPL: 133 dB±2 dB
Speaker Power: 800 W
Peak Power: 1600 W
Impedance: 8 ohms
Speaker Driver: 1 x 18" (100mm voice coil) woofer
Cabinet Dimensions: 730 mm (W) x 575 mm (H) x 752 mm (D)
Weight: 55 kg
