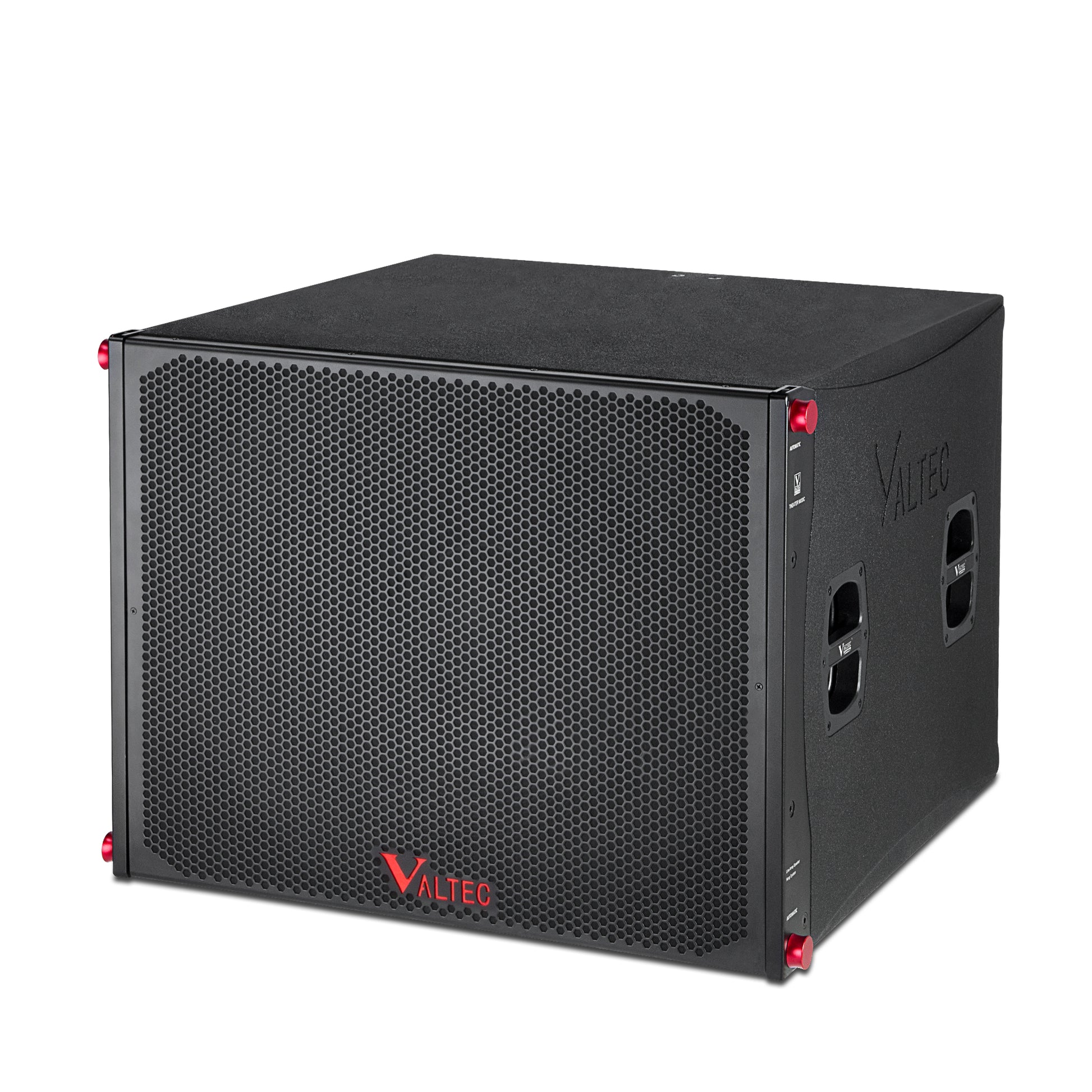

W215AW 15-Inch Waterproof Line Array Subwoofer

Description

Frequency Response: 40 Hz ~ 200 Hz (±3 dB) 30 Hz ~ 320 Hz (-10 dB)
Nominal Directivity: Omnidirectional
Characteristic Sensitivity Level: 100 dB SPL
Maximum SPL: 136 dB±2 dB
Speaker Power: 1000 W
Speaker Peak Power: 2000 W
Impedance: 8 ohms
Speaker Drivers: 2 x 15" (75mm voice coil) woofers
Angle: Adjustable at 5°, 0°, -5°, -10°
Connectivity: NL4: 1+1-
Connectors: 2 x 4-pin WP4 cabinet mounts
Material: 15mm, 18mm birch plywood
Surface Finish: Black polyurea lacquer
Grate: Acoustic-permeable mesh overlaid on the front grille
Cabinet Dimensions: 730 mm (W) x 575 mm (H) x 754 mm (D)
Weight: 60 kg

View Product Details

describe

The Valtec Tubesound VQ® series is designed for extreme outdoor environments, targeting outdoor cultural and tourism projects and large-scale speech reinforcement.

1. It integrates a thickened fiberglass (FRP) coated enclosure with a composite waterproof coating technology, creating a professional audio solution that combines waterproofing, explosion-proofing, and corrosion resistance.

2. Whether in torrential rain, sandstorms, or salt spray corrosion, it consistently delivers pure sound, redefining the durability and sound quality standards of outdoor speakers.

3. Made with industrial-grade materials, using epoxy resin and high-density fiberglass lamination, its impact resistance is increased by 300%.

4. A sealed structure with reinforced waterproof coating at weak seams and a strengthened internal frame design, achieving IP66 waterproof and dustproof performance.

5. Corrosion resistant, passing the ISO standard 2000-hour salt spray test, unaffected by acid rain, seawater, and corrosive gases from chemical plants.

6. Waterproof and dustproof, with a wide operating temperature range of -20℃ to +100℃ (passed 72-hour high and low temperature cycle impact test).

7. Resistant to wind and sand, meeting MIL-STD-810G sand and dust protection standards, suitable for desert and mining environments.

8. Ideal for outdoor cultural tourism projects, high-end entertainment projects, and large-scale speech reinforcement.

System Data
Frequency Response: 40 Hz – 200 Hz (±3 dB), 30 Hz – 320 Hz (-10 dB)
Nominal Directivity: Omnidirectional
Sensitivity: 100 dB SPL
Maximum Sound Pressure Level: 136 dB ±2 dB
Speaker Power: 1000 W
Peak Power: 2000 W
Impedance: 8 ohms
Drivers: 2 x 15" (75 mm voice coil) woofers
Tilt: Adjustable to 5°, 0°, -5°, -10°
Connection: NL4: 1+1-
Connectors: 2×4-pin WP4 speaker terminals
Material: 15 mm, 18 mm birch plywood
Finish: Black polyurea paint
Grille: Front grille covered with acoustic mesh
Cabinet dimensions: W 730 x H 575 x D 754 mm
Weight: 60 kg
