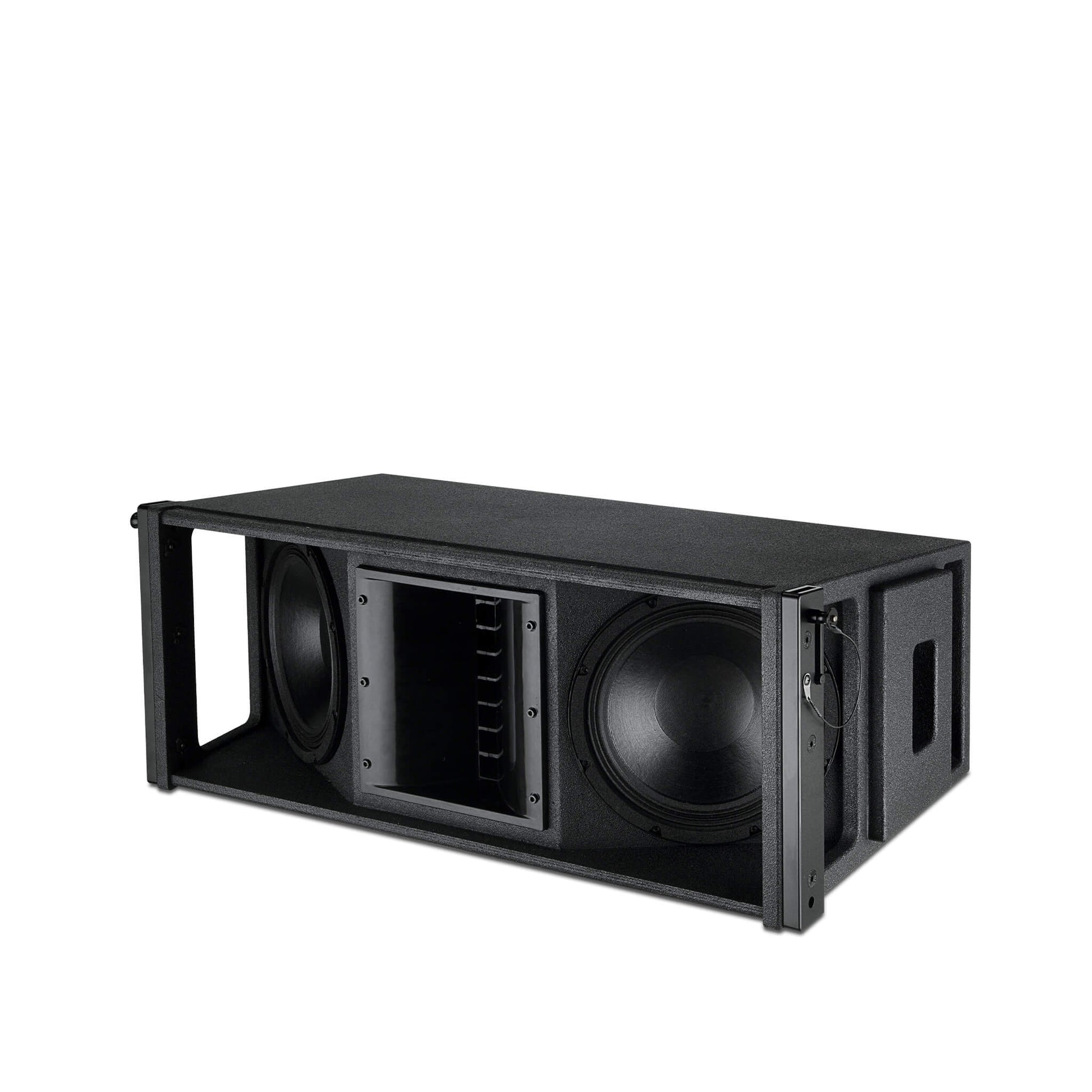

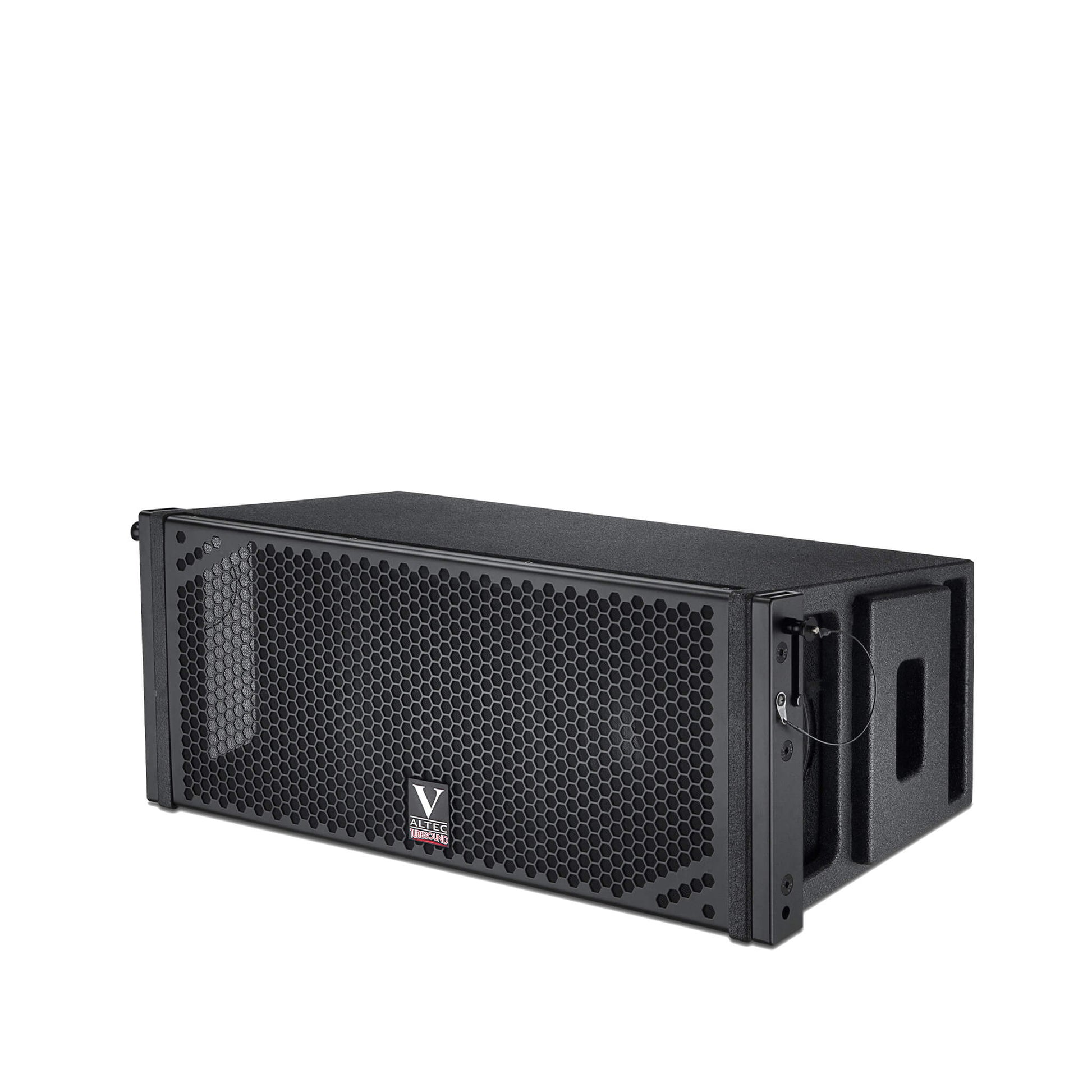

LAP-8 Dual 8-inch line array speakers

2-way vertical line array loudspeaker system

Description

Speaker Type: Two-way vertical linear source array loudspeaker
Available Bandwidth: 50 Hz - 20 kHz (-10 dB)
Speaker Power: HF 80W/LF 500W
Speaker Peak Power: HF 160W/LF 1000W
Sensitivity Levels: LF: 99dB±2dB HF: 106dB±2dB
Maximum SPL: 141 dB
Driver Size: HF: 1 x 3-inch compression tweeter
LF: 2 x 8-inch woofers (65mm voice coil)
Driver Impedance: LF: 2 x 16 Ω, HF: 8 Ω
Cabinet Dimensions: W 686 x H 279 x D 552 mm
Cabinet Weight: 28 Kg

View Product Details

describe

*High power, high sound pressure level: Multiple drivers combine to deliver massive sound energy.

*Long-throw capability: Thanks to cylindrical wave characteristics and controllable directivity.

*Precise vertical coverage control: Minimizes harmful reflections and maximizes direct sound energy.

*Wide and consistent horizontal coverage: Covers large audiences.

*Excellent uniformity: Minimal variation in sound pressure level and tonal quality from front to back and left to right.

*Rigging system: Typically equipped with professional rigging hardware for quick and safe installation at height.

*System-based design: Includes a main line array, subwoofers (typically suspended separately or stacked on the ground), a system processor, and amplifiers, all designed and optimized as a single integrated system.

Primary applications: Large-scale outdoor music festivals, arenas and stadiums, theaters and large performance halls, wedding banquet halls, large conference centers, transportation hubs, theme parks, and more.

System Data
Speaker Type: Two-way vertical line array speaker
Frequency Response: 50 Hz – 20 kHz (-10 dB)
Rated Power: HF 80 W / LF 500 W
Peak Power: HF 160 W / LF 1000 W
Sensitivity: LF: 99 dB ± 2 dB; HF: 106 dB ± 2 dB
Maximum Sound Pressure Level: 141 dB
Vertical Coverage: Depends on the number of speakers and line array curvature
Vertical Angle Adjustment: 0.25, 1, 2, 3, 4, 5, 7.5, or 10°
Horizontal Coverage: 110°
Driver Dimensions: HF: 1 x 3-inch compression tweeter
LF: 2 x 8-inch woofers (65mm voice coil)
Driver Impedance: LF: 2 x 16 Ω, HF: 8 Ω
Input Connection: 4-pin PA-COM®
LINK Connection: 4-pin PA-COM®
Connector: LP28 waterproof aviation connector, 4-pin
Wiring Configuration: 1-2+…HF, 3-4+…LF
Material: 18mm birch plywood
Grille: Front grille lined with acoustic mesh
Cabinet Dimensions: W 686 x H 279 x D 552 mm
Cabinet Weight: 28 kg
