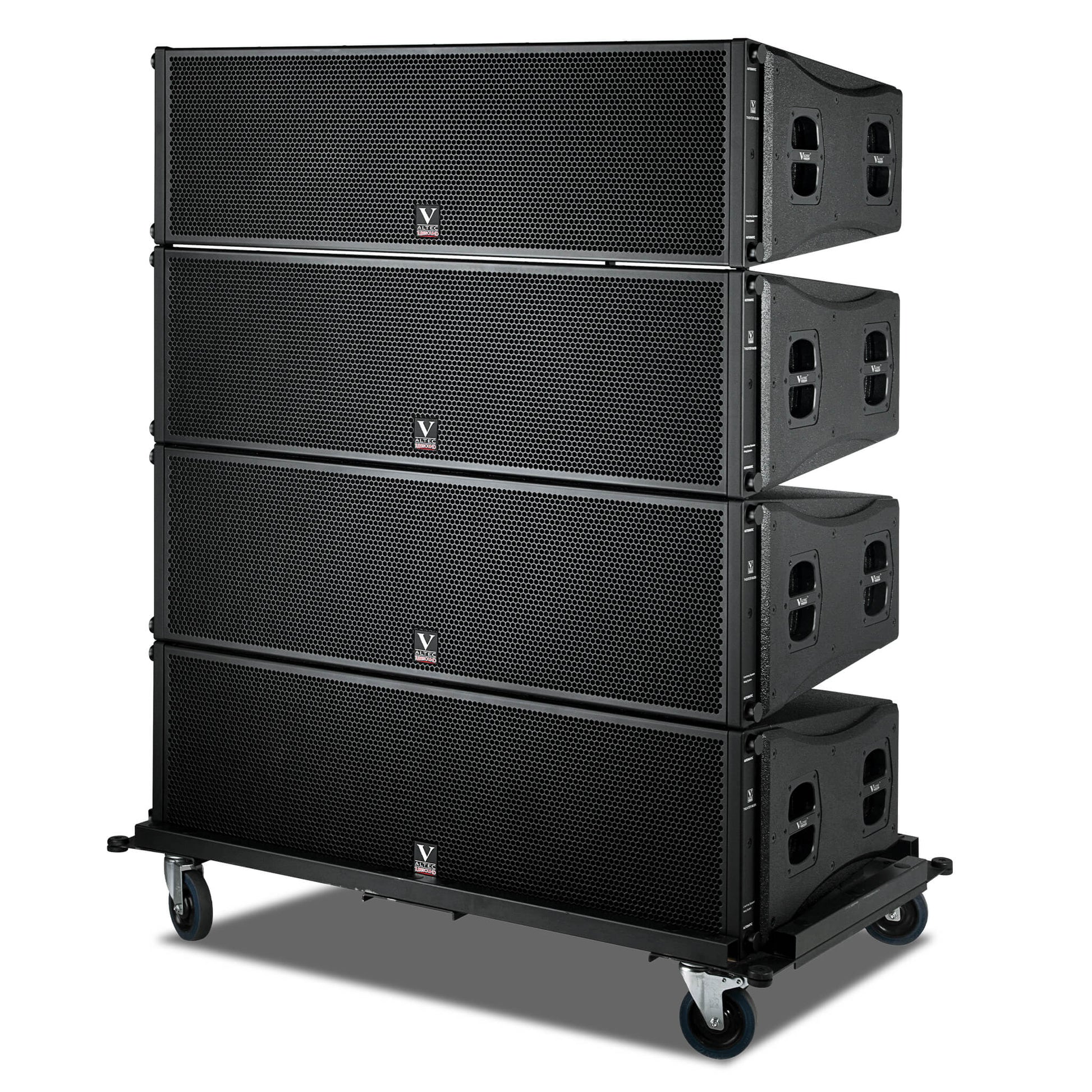

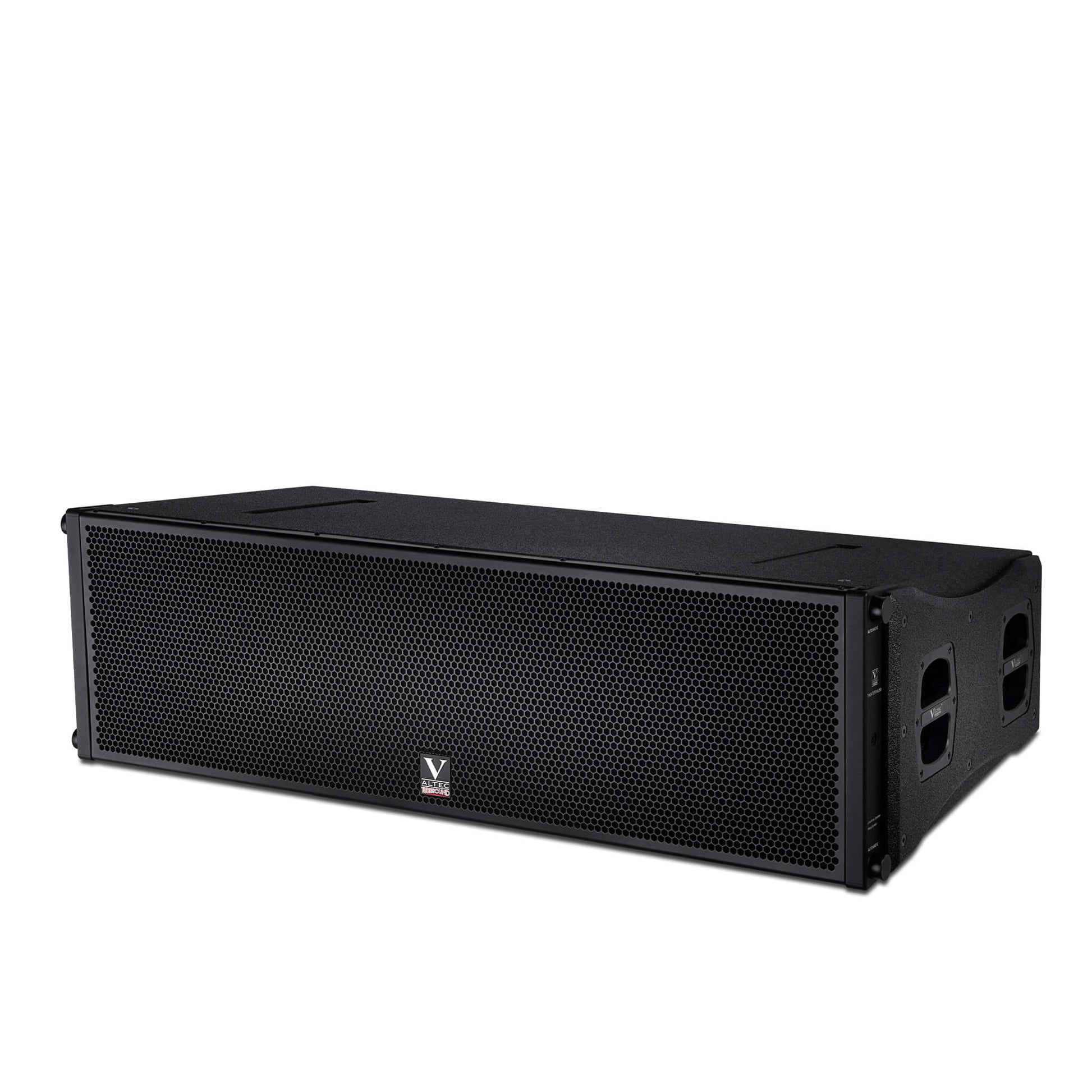

V10 Dual 10-inch three-way line array speakers

FRP (Fiberglass Reinforced Plastic) Two-Way Vertical Linear Source Array Loudspeaker

Description

Patented Technology; Midrange and Bass Phase Plug Loading Technology
Available Bandwidth: 60 Hz ~ 18 kHz (±3 dB)
75 Hz ~ 20 kHz (-10 dB)
Speaker Power: HF100W/MF360W/LF700W
Speaker Peak Power: HF200W/MF720W/LF1400W
Characteristic Sensitivity Levels: HF 113 dB SPL / MF 105 dB SPL / LF100 dB SPL
Maximum SPL Levels: HF: 132/138 dB SPL peak
MF: 126/132 dB SPL peak
LF: 122/131 dB SPL peak
Vertical Directivity: 90° (Vertical) Vertically Adjustable
Driver Size: HF 2 x 1.75" Neodymium Magnet Compression Tweeter
MF 4 x 5" (41mm Voice Coil) Neodymium Magnet Midrange
LF 2 x 10" (75mm voice coil) Neodymium magnet woofer
Driver impedance: LF: 2 x 16Ω, MF: 2 x 16Ω, HF: 8Ω
Cabinet dimensions: W 996 x H 317 x D 454 mm
Cabinet weight: 58 Kg

View Product Details

describe

A professional three-way vertical line array loudspeaker featuring midrange and woofer phase plug loading technology, equipped with neodymium magnet tweeters, midrange drivers, and woofers. It delivers clear vocal reproduction, powerful sound pressure output, and stable long-throw projection. Featuring multi-step array angle adjustment, waterproof aviation connectors, and a durable polyurea-coated birch cabinet, this system is ideal for large-scale performances, outdoor events, theaters, multipurpose halls, and professional fixed installation projects.


System Data
Speaker Type: Three-way vertical line array speaker
Patented Technology: Midrange and woofer phase plug loading technology
Frequency Response: 60 Hz – 18 kHz (±3 dB)
75 Hz – 20 kHz (-10 dB)
Speaker Power: HF 100 W / MF 360 W / LF 700 W
Peak Power Handling: HF 200 W / MF 720 W / LF 1400 W
Sensitivity Levels: HF 113 dB SPL / MF 105 dB SPL / LF 100 dB SPL
Maximum Sound Pressure Level: HF: 132/138 dB SPL peak
MF: 126/132 dB SPL peak
LF: 122/131 dB SPL peak
Vertical Coverage: 90° (vertical), vertically adjustable
Speaker Angle Adjustment: 0.25, 1, 2, 3, 4, 5, 7.5, or 10°
Horizontal Coverage: 110°

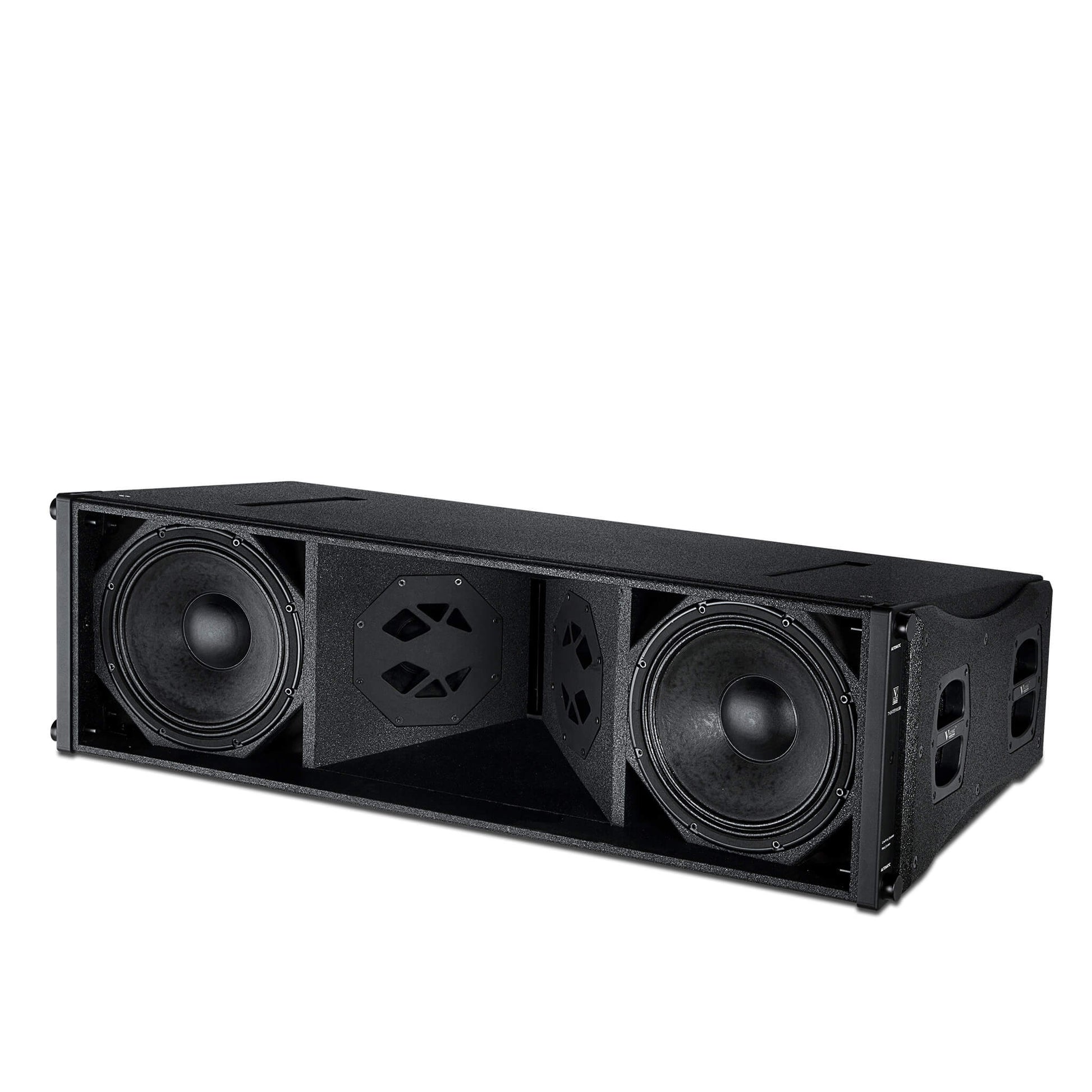

Driver Specifications HF: 2 x 1.75" neodymium compression tweeters
MF: 4 x 5" (41mm voice coil) neodymium midrange drivers
LF: 2 x 10" (75mm voice coil) neodymium woofers
Driver Impedance: LF: 2 x 16Ω, MF: 2 x 16Ω, HF: 8Ω
Input Connection: 8-pin PA-COM®
LINK Connection: 8-pin PA-COM®
Connector: LP28 waterproof aviation connector, 4-pin
Wiring: 1-2+…HF, 3-4+…LF, 5-6+…HF
Material: 18mm birch plywood
Finish: Black polyurea paint
Grille: Front grille lined with acoustic mesh
Cabinet Dimensions: W 996 x H 317 x D 454 mm
Cabinet Weight: 58 kg
