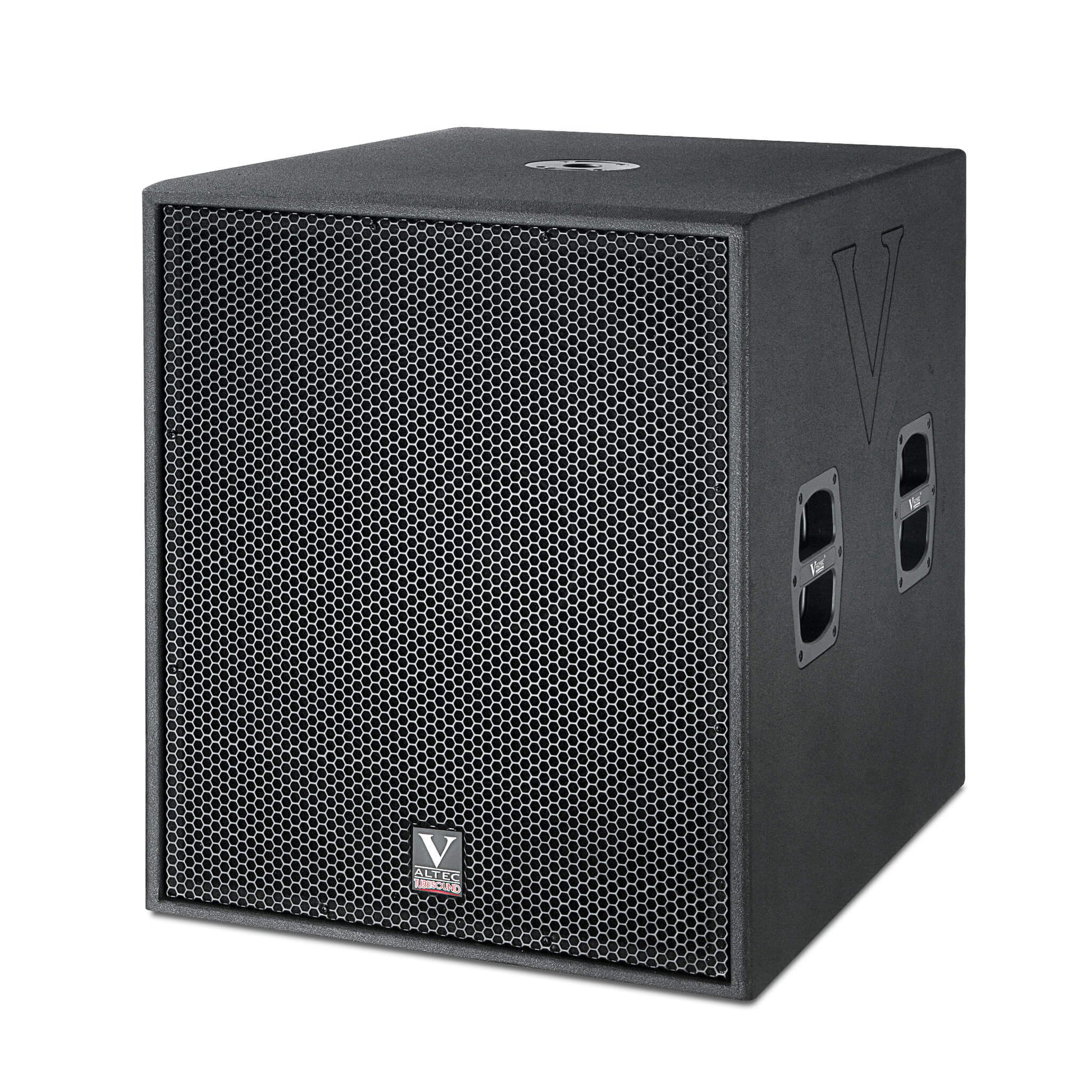

VF18L 18-inch subwoofer

Description

Nominal Power (AES): 800W
Peak Power: 1600W
Nominal Impedance: 8Ω
Operating Frequency Response: 40 Hz ~ 120 Hz (± 3 dB); 35 Hz ~ 180 Hz (-10dB)
Sensitivity (@1W/1m): 100dB
Maximum SPL Peak: 127 dB / 134 dB SPL
Driver: 1×18" Waterproof Coated Driver
Net Weight/Gross Weight: 40kg
Product Dimensions (W×D×H): 564×680×657mm

View Product Details

describe

The VF Series features high-quality, high-efficiency drivers that deliver high power handling and minimal distortion. The high frequencies are provided by a waveguide that ensures precise horizontal and vertical pattern control, while the smooth frequency response covers a wider range. The long-throw woofers deliver clean, clear, and powerful bass with minimal dynamic compression, even at high volumes and during continuous use.

System Data
Rated Power (AES): 800 W
Peak Power: 1600 W
Nominal Impedance: 8 Ω
Frequency Response: 40 Hz – 120 Hz (±3 dB); 35 Hz – 180 Hz (-10 dB)
Sensitivity (@1 W/1 m): 100 dB
Maximum Sound Pressure Level: 127 dB / 134 dB SPL peak
Driver: 1×18" waterproof-coated driver
Voice Coil Diameter: 100 mm
Crossover Frequency: 80/110 Hz
Connectors: 2×NL4 Speakon;
Net Weight/Gross Weight: 40 kg
Dimensions (W×D×H): 564×680×657 mm
