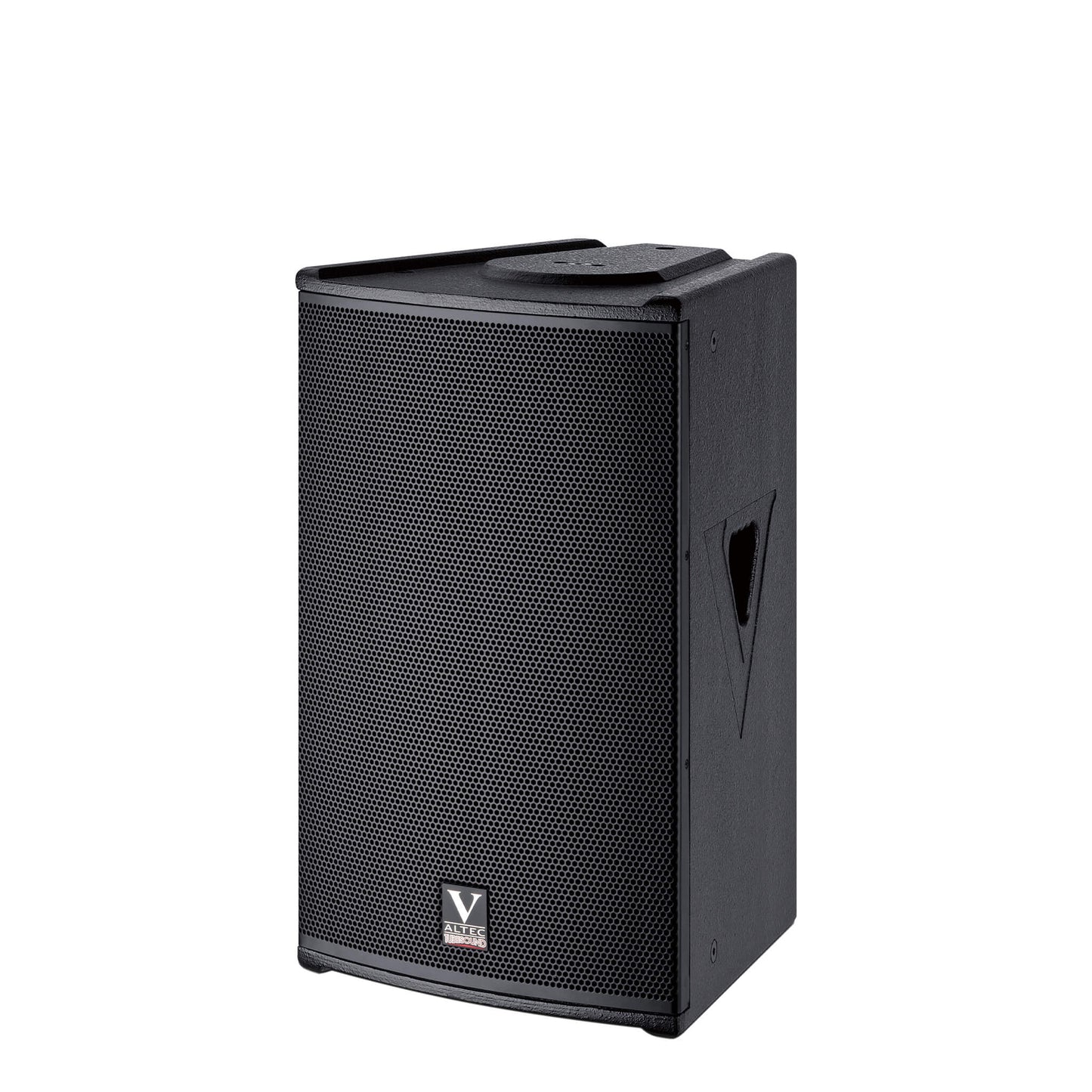

VMH-10 10-inch full-range speaker

Description

Rated Power: 350W
Peak Power: 700W
Frequency Response (±3dB): 55Hz–18kHz
Frequency Range (-10dB): 50Hz–20kHz
Nominal Impedance: 8Ω
Sensitivity (@1W/1m): 92dB SPL
Maximum SPL: 118dB
Peak SPL: 124dB
Coverage (H × V): 90° × 60°
HF Driver: 1 × 1.75" Ferrite Compression Driver, Polyester Diaphragm, 8Ω
LF Driver: 1 × 10" Ferrite Woofer, 75mm Voice Coil, 8Ω
Crossover Frequency: 1.58kHz
Connectors: 2 × NL4 Speakon
Net Weight: 20kg
Dimensions (W × D × H): 318 × 325 × 512mm

View Product Details

describe

The VMH Premium Business Series speakers are specifically designed for a variety of high-end indoor and outdoor performance venues, auditoriums, party rooms, KTV rooms, bars, and similar settings. This series utilizes high-end high-frequency compression drivers, which deliver a refined, rich sound and offer exceptional durability, capable of withstanding high-power loads for extended periods to ensure the equipment’s longevity. The high-power low-frequency drivers ensure stable performance under high dynamic signal loads, maintaining optimal dynamic distortion response to sustain the low-frequency range’s dynamic range and high clarity. Additionally, the VMH series’ high-frequency horns incorporate a wide-coverage design made of aluminum alloy, effectively boosting high-frequency dynamic sound pressure levels and enhancing sound clarity.

System Data
Rated Power: 350W
Peak Power: 700W
Frequency Response (±3dB): 55Hz–18kHz
Frequency Range (-10dB): 50Hz–20kHz
Nominal Impedance: 8Ω
Sensitivity (@1W/1m): 92dB SPL
Maximum SPL: 118dB
Peak SPL: 124dB
Coverage (H × V): 90° × 60°
HF Driver: 1 × 1.75" Ferrite Compression Driver, Polyester Diaphragm, 8Ω
LF Driver: 1 × 10" Ferrite Woofer, 75mm Voice Coil, 8Ω
Crossover Frequency: 1.58kHz
Connectors: 2 × NL4 Speakon
Net Weight: 20kg
Dimensions (W × D × H): 318 × 325 × 512mm

Downloads

Download
VMH10 Professional Speaker Product Manual PDF English
