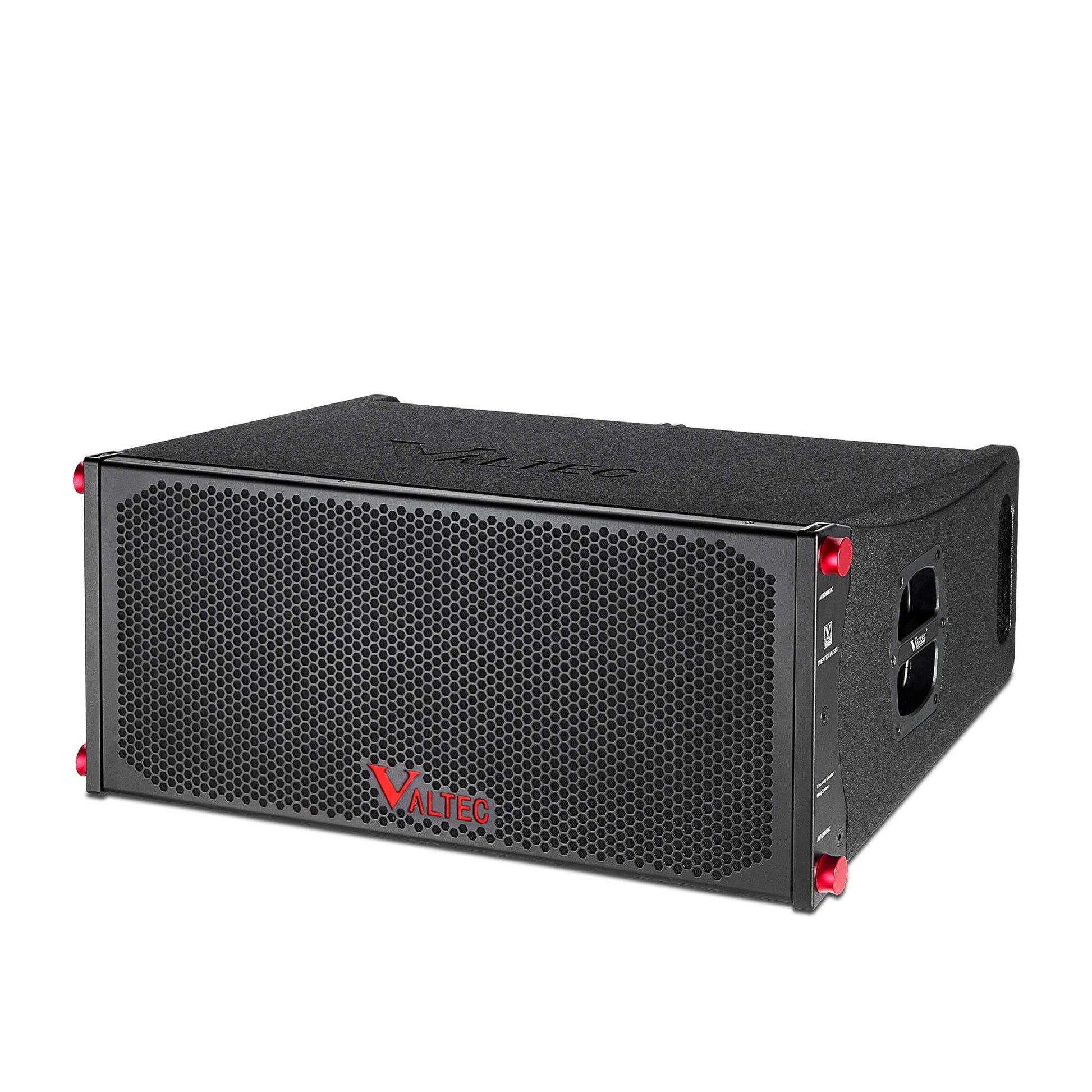

VQ8L Dual 6-Inch Waterproof Line Array Speakers

2-way vertical linear source array loudspeakers

Description

Patented Technology: Bass Phase Plug Loading Technology
Frequency Response: 50 Hz – 20 kHz (-10 dB)
Rated Power: HF 80 W / LF 500 W
Peak Power: HF 160 W / LF 1000 W
Sensitivity: LF: 99 dB ± 2 dB / HF: 106 dB ± 2 dB
Maximum Sound Pressure Level: 141 dB
Horizontal Coverage: 110°
Driver Dimensions: HF: 1 x 3-inch neodymium compression tweeter
LF: 2 x 8-inch woofers (65mm voice coil)
Driver Impedance: LF: 2 x 16 Ω, HF: 8 Ω
Cabinet Dimensions: W 690 x H 288 x D 535 mm
Cabinet Weight: 32 kg

View Product Details

describe

The Valtec Tubesound VQ® series compact line array system combines next-generation neodymium magnet drivers, BASS PHASE TYPE™ low-frequency phase plug technology (patented bass phase plug mounting technology), and an optimized acoustic cabinet, among other mature and reliable line array technologies. Its creation is significant, redefining our understanding of line array technology. Driven by an external high-power amplifier, and supplemented by a DSP line array controller and software, it efficiently and quickly achieves smooth, linear high sound pressure levels.

System Data
Speaker Type: Two-way vertical line array speaker
Patented Technology: Bass phase plug loading technology
Frequency Response: 50 Hz – 20 kHz (-10 dB)
Speaker Power: HF 80 W / LF 500 W
Peak Power: HF 160 W / LF 1000 W
Sensitivity: LF: 99 dB ± 2 dB; HF: 106 dB ± 2 dB
Maximum Sound Pressure Level: 141 dB
Vertical Coverage: Depends on the number of speakers and line array curvature
Vertical Angle Adjustment: 0.25, 1, 2, 3, 4, 5, 7.5, or 10°
Horizontal Coverage: 110°
Driver Dimensions: HF: 1 x 3-inch neodymium compression tweeter
LF: 2 x 8-inch woofers (65mm voice coil)
Driver Impedance: LF: 2 x 16 Ω, HF: 8 Ω
Input Connection: 4-pin PA-COM®
LINK Connection: 4-pin PA-COM®
Connector: LP28 waterproof aviation connector (4-pin)
Wiring Configuration: 1-2+…HF, 3-4+…LF
Material: 18mm birch plywood
Finish: Black polyurea paint
Grille: Front grille lined with acoustic mesh
Cabinet Dimensions: W 690 x H 288 x D 535 mm
Cabinet Weight: 32 kg
