Collection: Products

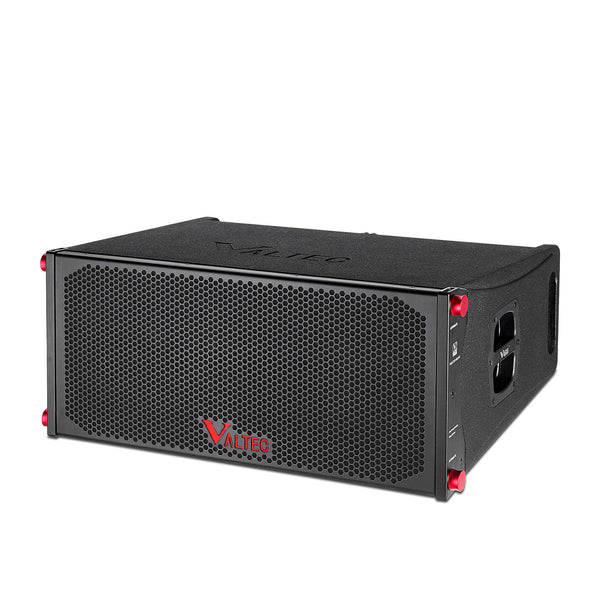

Patented Technology: Bass Phase Plug Loading Technology
Frequency Response: 50 Hz – 20 kHz (-10 dB)
Speaker Power: HF 80W / LF 500W
Speaker Peak Power: HF 160W / LF 1000W
Sensitivity: LF: 99 dB ± 2 dB; HF: 106 dB ± 2 dB
Maximum Sound Pressure Level: 141 dB
Driver Dimensions: HF: 1 x 3-inch neodymium compression tweeter
LF: 2 x 8-inch woofers (65mm voice coil)
Driver Impedance: LF: 2 x 16 Ω, HF: 8 Ω
Cabinet Dimensions: W 690 x H 288 x D 535 mm
Cabinet weight: 32 kg

Patented Technology: Bass Phase Plug Loading Technology
Frequency Response: 50 Hz – 20 kHz (-10 dB)
Rated Power: HF 80 W / LF 500 W
Peak Power: HF 160 W / LF 1000 W
Sensitivity: LF: 99 dB ± 2 dB / HF: 106 dB ± 2 dB
Maximum Sound Pressure Level: 141 dB
Horizontal Coverage: 110°
Driver Dimensions: HF: 1 x 3-inch neodymium compression tweeter
LF: 2 x 8-inch woofers (65mm voice coil)
Driver Impedance: LF: 2 x 16 Ω, HF: 8 Ω
Cabinet Dimensions: W 690 x H 288 x D 535 mm
Cabinet Weight: 32 kg

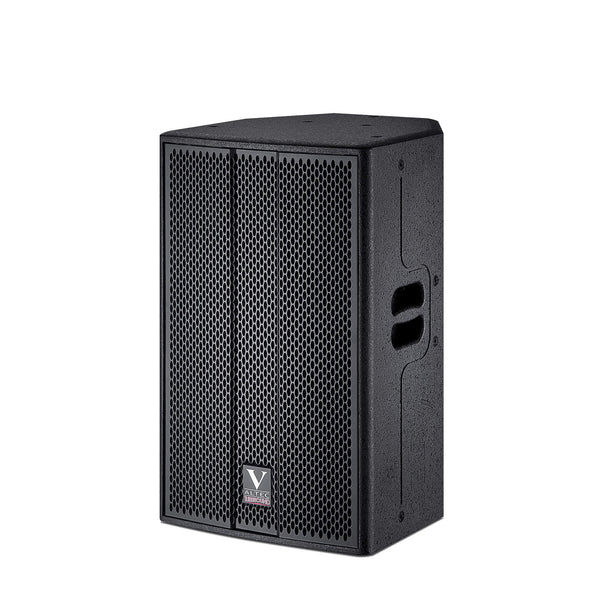

Woofer: 1×10" woofer (156-pole, 65-core, aluminum frame, fabric surround);
Tweeter: 1×1.75" tweeter; (44-core)
Rated power: 250W/500W;
Sensitivity: 96dB;
Maximum Sound Pressure Level: 119 dB;
Nominal Impedance: 8 Ω;
Frequency Response (±3 dB): 65 Hz–19 kHz;
Coverage Angle: H60° × V40°;
Dimensions: Width 305 mm, Depth 330 mm, Height 500 mm;

Woofer: 1×12" woofer (170-gauss, 75-turn voice coil, aluminum frame, cloth surround);            Tweeter: 1×1.75" tweeter (44-turn voice coil);
Rated power: 350W/700W;
Sensitivity: 96dB;
Maximum SPL: 121dB;
Nominal impedance: 8Ω;
Frequency response (±3dB): 55Hz–19kHz;
Coverage angle: H80° × V50°;
Dimensions: Width 352mm, Depth 380mm, Height 585mm;

Woofer: 1×15" woofer (190mm magnet, 75mm voice coil, aluminum frame, cloth surround);    Tweeter: 1×3" tweeter (75mm voice coil);
Rated power: 450W/900W
Sensitivity: 97dB
Maximum Sound Pressure Level: 123dB;
Nominal Impedance: 8Ω;
Frequency Response (±3dB): 51Hz–19kHz;
Coverage Angle: H80° × V50°;
Dimensions: Width 440mm, Depth 472mm, Height 702mm;

Woofer: 1×8" woofer (120-pole, 50-core, aluminum frame, fabric surround);
Tweeter: 1×1.35" tweeter; (34-core)
Rated power: 200W/400W
Sensitivity: 97dB
Maximum Sound Pressure Level: 116 dB;
Nominal Impedance: 8 Ω;
Frequency Response (±3 dB): 65 Hz–18 kHz;
Coverage Angle: H60° × V40°;
Dimensions: Width 246 mm, Depth 240 mm, Height 405 mm;

Amplifier Power: 300W + 300W + 800W (Class D digital amplifier with DSP digital processor) Rated Power: 500W
Peak Power: 900W
Rated Impedance: 8 Ω
Frequency Range: 20Hz-150Hz
Sensitivity: 101dB
System Components: LF unit 12-in ×1
Dimensions (H x W x D): 570 x 350 x 350mm
Input Connections: 4 x Euroblock
Net Weight: 26 KG

Frequency Response: 30 Hz ~ 450 Hz (±3 dB) 30 Hz ~ 680 Hz (-10 dB)
Characteristic Sensitivity Level: 95 dB SPL
Maximum SPL: 127 dB±2 dB
Speaker Power: 600 W
Peak Speaker Power: 1200 W
Impedance: 8 ohms
Speaker Driver: 1 x 15" (75mm voice coil) woofer
Cabinet Dimensions: 596 mm (W) x 490 mm (H) x 592 mm (D)
Weight: 25 kg

Amplifier Power: 300W + 300W + 800W (Class D digital amplifier with DSP digital processor) Rated Power: 500W
Peak Power: 900W
Rated Impedance: 8 Ω
Frequency Range: 20Hz-150Hz
Sensitivity: 101dB
System Components: LF unit 12-in ×1
Dimensions (H x W x D): 570 x 350 x 350mm
Input Connections: 4 x Euroblock
Net Weight: 26 KG

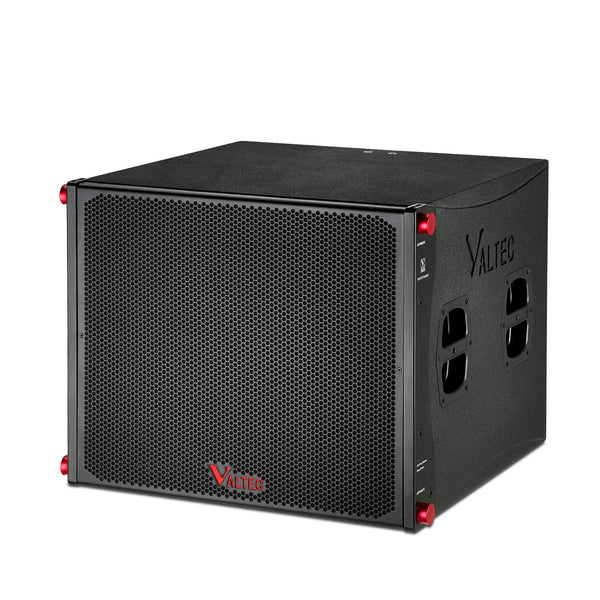

Frequency Response: 40 Hz ~ 150 Hz (±3 dB) 30 Hz ~ 200 Hz (-10 dB)
Characteristic Sensitivity Level: 99 dB SPL
Maximum SPL: 133 dB±2 dB
Speaker Power: 800 W
Peak Power: 1600 W
Impedance: 8 ohms
Speaker Driver: 1 x 18" (100mm voice coil) woofer
Cabinet Dimensions: 730 mm (W) x 575 mm (H) x 752 mm (D)
Weight: 55 kg

Frequency Response: 40 Hz ~ 150 Hz (±3 dB) 30 Hz ~ 200 Hz (-10 dB)
Characteristic Sensitivity Level: 99 dB SPL
Maximum SPL: 133 dB±2 dB
Speaker Power: 800 W
Peak Power: 1600 W
Impedance: 8 ohms
Speaker Driver: 1 x 18" (100mm voice coil) woofer
Cabinet Dimensions: 730 mm (W) x 575 mm (H) x 752 mm (D)
Weight: 55 kg

Amplifier Power: 600W + 600W + 1200W (Class D digital amplifier with DSP digital processor) Rated Power: 800W
Peak Power: 1500W
Rated Impedance: 8 Ω
Frequency Range: 20Hz-150Hz
Sensitivity: 102dB System Components: LF unit 18-in ×1
Dimensions (H x W x D): 650 x 520 x 520mm
Input Connections: 4 x Euroblock
Net Weight: 40 KG

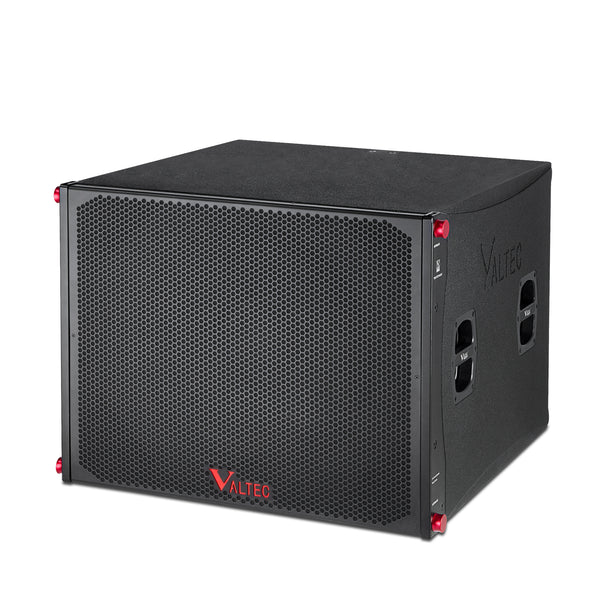

Frequency Response: 40 Hz ~ 200 Hz (±3 dB) 30 Hz ~ 320 Hz (-10 dB)
Sensitivity Level: 100 dB SPL
Maximum SPL: 136 dB±2 dB
Speaker Power: 1000 W
Peak Power: 2000 W
Impedance: 4 ohms
Speaker Drivers: 2 x 15" (75mm voice coil) woofers
Cabinet Dimensions: W 690 x H 575 x D 754 mm
Weight: 60 kg

Frequency Response: 40 Hz ~ 200 Hz (±3 dB) 30 Hz ~ 320 Hz (-10 dB)
Nominal Directivity: Omnidirectional
Characteristic Sensitivity Level: 100 dB SPL
Maximum SPL: 136 dB±2 dB
Speaker Power: 1000 W
Speaker Peak Power: 2000 W
Impedance: 8 ohms
Speaker Drivers: 2 x 15" (75mm voice coil) woofers
Angle: Adjustable at 5°, 0°, -5°, -10°
Connectivity: NL4: 1+1-
Connectors: 2 x 4-pin WP4 cabinet mounts
Material: 15mm, 18mm birch plywood
Surface Finish: Black polyurea lacquer
Grate: Acoustic-permeable mesh overlaid on the front grille
Cabinet Dimensions: 730 mm (W) x 575 mm (H) x 754 mm (D)
Weight: 60 kg

Frequency Response: 28 Hz ~ 180 Hz (±3 dB) 26 Hz ~ 250 Hz (-10 dB)
Characteristic Sensitivity Level: 102 dB SPL
Maximum SPL: 138 dB±2 dB
Speaker Power: 1600 W
Peak Power: 3200 W
Impedance: 4 ohms
Speaker Drivers: 2 x 18" (100mm voice coil) woofers
Cabinet Dimensions: 846 mm (W) x 575 mm (H) x 801 mm (D)
Weight: 90 kg

Frequency Response: 28 Hz ~ 180 Hz (±3 dB) 26 Hz ~ 250 Hz (-10 dB)
Characteristic Sensitivity Level: 102 dB SPL
Maximum SPL: 138 dB±2 dB
Speaker Power: 1600 W
Peak Power: 3200 W
Impedance: 4 ohms
Speaker Drivers: 2 x 18" (100mm voice coil) woofers
Cabinet Dimensions: 846 mm (W) x 575 mm (H) x 801 mm (D)
Weight: 90 kg

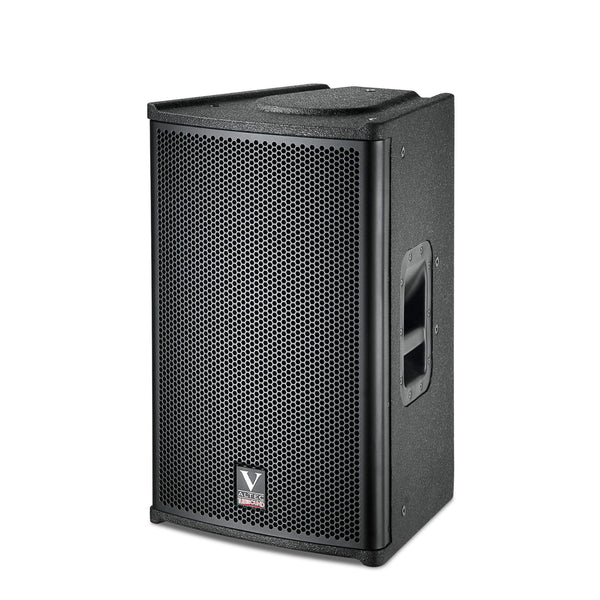

Tweeter: 1 x 1.75" 44-core aluminum rear cover tweeter;
Woofer: 1 x 12" 190 magnet 75-core aluminum frame woofer;
Rated Power (W): 450W
Frequency Response: 60Hz-19kHz (±3dB);
Sensitivity: 99dB;
Maximum SPL: 126dB
Angle (H×V): 90°×60°;
Dimensions (W×D×H): 390×376×608mm;
Weight: 22kg;

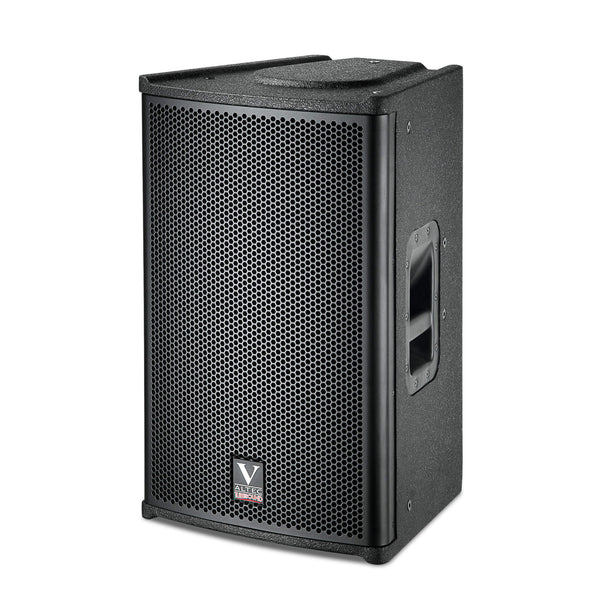

Tweeter: 1 x 3" 75-core aluminum rear-cover tweeter;
Woofer: 1 x 15" 220 magnet 100-core woofer;
Rated Power (W): 520W;
Frequency Response: 55Hz-19kHz (±3dB);
Sensitivity: 100dB;
Maximum SPL: 129dB;
Angle (H×V): 90°×60°;
Weight: 33kg;

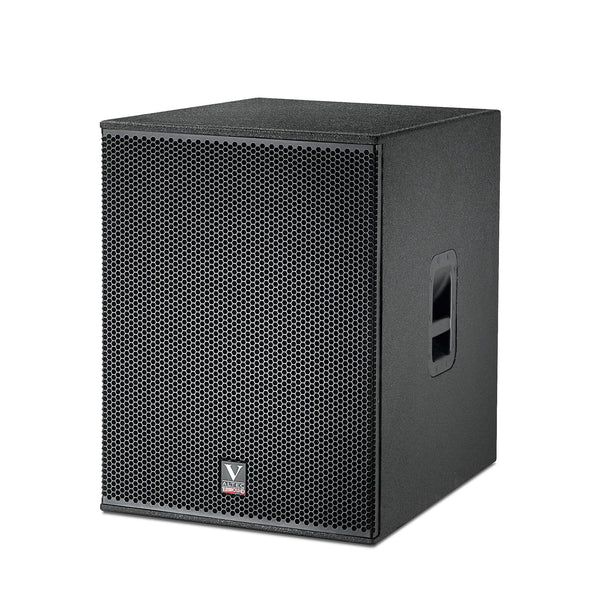

Nominal Power (AES): 800W
Peak Power: 1600W
Nominal Impedance: 8Ω
Operating Frequency Response: 40 Hz ~ 120 Hz (± 3 dB); 35 Hz ~ 180 Hz (-10dB)
Sensitivity (@1W/1m): 100dB
Maximum SPL Level: 127 dB / 134 dB SPL peak
Driver: 1×18" Waterproof Coated Driver
Voice Coil Diameter: 100mm
Crossover Frequency: 80/110Hz
Sockets: 2×SP20 Speakon
Net Weight/Gross Weight: 40kg
Product Dimensions (W×D×H): 523×694×658mm

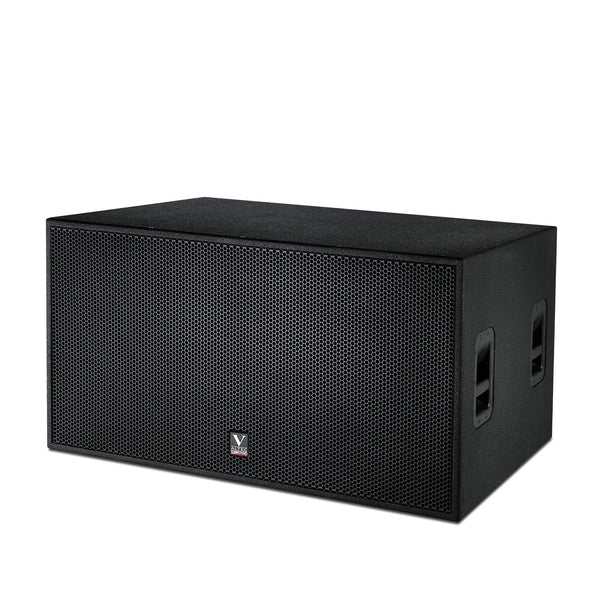

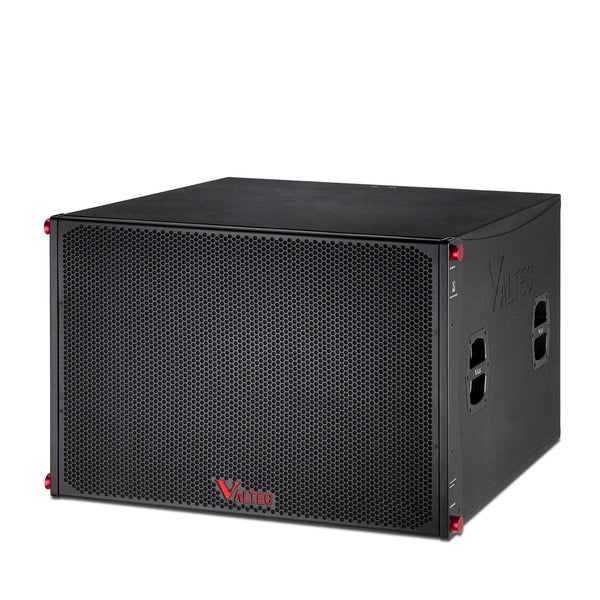

Nominal Power (AES): 1600W
Peak Power: 3200W
Nominal Impedance: 4Ω
Operating Frequency Response: 32 Hz ~ 175 Hz (±3 dB), 30 Hz ~ 250 Hz (-10 dB)
Sensitivity (@1W/1m): 103dB
Maximum SPL: 136 dB/142 dB SPL peak
Drivers: 2 × 18" waterproof coated drivers
Driver Voice Coil Diameter: 100mm
Crossover Frequency: 85Hz
Sockets: 2 × SP20 Speakon
Net Weight/Gross Weight: 76kg
Product Dimensions (W×D×H): 1100*823*596mm
