Collection: Products

Patented Technology; Midrange and Bass Phase Plug Loading Technology
Available Bandwidth: 60 Hz ~ 18 kHz (±3 dB)
70 Hz ~ 20 kHz (-10 dB)
Speaker Power: HF100W/MF320W/LF500W
Speaker Peak Power: HF200W/MF640W/LF1000W
Characteristic Sensitivity Levels: HF 103 dB SPL / MF 102 dB SPL / LF 98 dB SPL
Maximum SPL Levels: HF: 132/138 dB SPL peak
MF: 112/126 dB SPL peak
LF: 125/130 dB SPL peak
Driver Size: HF 2 x 1.75" Neodymium Magnet Compression Tweeter
MF 4 x 4.5" (30mm Voice Coil) Neodymium Magnet Midrange
LF 2 x 8" (65mm voice coil) Neodymium magnet woofer
Enclosure dimensions: 852mm (W) x 295mm (H) x 420mm (D)
Enclosure weight: 49kg

Rated Power: 350W
Peak Power: 700W
Frequency Response (± 3 dB): 55 Hz ~ 18 kHz
Frequency Response Range (-10dB): 50 Hz ~ 20 kHz
Impedance: 8Ω
Input Sensitivity (@1W/1m): 92 dB SPL
Maximum SPL: 118dB
Peak SPL: 124dB
Horizontal Coverage Angle: 90°
Vertical Coverage Angle: 60°
Net Weight/Gross Weight: 20kg
Product Dimensions (W×D×H): 330×305×490mm

Rated Power: 400W
Peak Power: 800W
Frequency Response (± 3 dB): 55 Hz ~ 18 kHz
Frequency Response Range (-10dB): 40 Hz ~ 20 kHz
Impedance: 8Ω
Input Sensitivity (@1W/1m): 96 dB SPL
Maximum SPL: 122dB
Peak SPL: 128dB
Horizontal Coverage Angle: 90°
Vertical Coverage Angle: 60°
Net Weight/Gross Weight: 22kg
Product Dimensions (W×D×H): 370×400×600mm

Rated Power: 450W
Peak Power: 900W
Frequency Response (± 3 dB): 50 Hz ~ 18 kHz
Frequency Range (-10dB): 30 Hz ~ 20 kHz
Impedance: 8Ω
Input Sensitivity (@1W/1m): 97dB
Maximum SPL: 123dB
Peak SPL: 129dB
Net Weight/Gross Weight: 26kg

Nominal Power (AES): 800W
Peak Power: 1600W
Nominal Impedance: 8Ω
Operating Frequency Response: 40 Hz ~ 120 Hz (± 3 dB); 35 Hz ~ 180 Hz (-10dB)
Sensitivity (@1W/1m): 100dB
Maximum SPL Peak: 127 dB / 134 dB SPL
Driver: 1×18" Waterproof Coated Driver
Net Weight/Gross Weight: 40kg
Product Dimensions (W×D×H): 564×680×657mm

Nominal Power (AES): 800W
Peak Power: 1600W
Nominal Impedance: 8Ω
Operating Frequency Response: 40 Hz ~ 120 Hz (± 3 dB); 35 Hz ~ 180 Hz (-10dB)
Sensitivity (@1W/1m): 100dB
Maximum SPL Peak: 127 dB / 134 dB SPL
Driver: 1×18" Waterproof Coated Driver
Net Weight/Gross Weight: 40kg
Product Dimensions (W×D×H): 564×680×657mm

VM5
Rated Power: 700W
Peak Power: 1200W
Impedance: 6Ω
Input Sensitivity (@1W/1m): 96dB
Maximum SPL: 127dB
Peak SPL: 129dB
Horizontal Coverage Angle: 120°
Vertical Coverage Angle: 15°
High Frequency: 3 x 44mm (1.75in) voice coil Neodymium
Low Frequency: 6 x 5in, 38mm (1.5in) voice coil Neodymium
Weight: 20KG
VM-212
Product Dimensions (W×D×H): 163.5 x 184 x 1313mm
Rated Power: 700W
Peak Power: 1400W
Impedance: 4Ω
Input Sensitivity (@1W/1m): 98dB
Maximum SPL: 128dB
Peak SPL: 131dB
Low Frequency: 2 x 12in, 75mm (3in) voice coil Neodymium
Product Dimensions (W×D×H): 334 x 349.5 x 849mm
VM-5A & VM-5B must be used together to form a VM-5 system.

VM6
Rated Power: 700W
Peak Power: 1200W
Frequency Response (± 3 dB): 120-18kHz
Frequency Range (-10dB): 100-19kHz
Maximum SPL: 127dB
Peak SPL: 129dB
High Frequency: 3 x 44mm (1.75in) voice coil Neodymium
Low Frequency: 4 x 6.5in, 38mm (1.5in) voice coil Neodymium
Net Weight/Gross Weight: 16.5KG
Product Dimensions (W×D×H): 196X225X1124.
VM-118
Rated Power: 1000W
Peak Power: 20...Peak Power: 1200W
Frequency Range (-10dB): 100-19kHz
Maximum SPL: 127dB
Peak SPL: 129dB
High Frequency: 3 x 44mm (1.75in) voice coil Neodymium
Low Frequency: 4 x 6.5in, 38mm ( Frequency response (-10dB): 40-150Hz Impedance: 8Ω Input sensitivity (@1W/1m): 98dB Maximum SPL: 129dB Peak SPL: 132dB Low frequency: 1 x 18in 100mm (4in) voice coil Neodymium Net weight/gross weight: 50KG Product dimensions (W×D×H): 379X776X840

Rated Power: 350W
Peak Power: 700W
Frequency Response (± 3 dB): 55 Hz ~ 18 kHz
Frequency Range (-10dB): 50 Hz ~ 20 kHz
Impedance: 8Ω
Input Sensitivity (@1W/1m): 92 dB SPL
Maximum SPL: 118dB
Peak SPL: 124dB
Horizontal Coverage Angle: 90°
Vertical Coverage Angle: 60°
Net Weight/Gross Weight: 20kg
Product Dimensions (W×D×H): 318×325×512mm

Nominal Power (AES): 800W
Peak Power: 1600W
Nominal Impedance: 8Ω
Operating Frequency Response: 32 Hz ~ 180 Hz (±3 dB), 30 Hz ~ 250 Hz (-10 dB)
Sensitivity (@1W/1m): 100dB
Maximum SPL Peak: 129 dB / 135 dB
Driver: 1×18" Waterproof Coated Driver
Net Weight/Gross Weight: 42kg
Product Dimensions (W×D×H): 523×703×694mm

Rated Power: 350W
Peak Power: 700W
Frequency Response (± 3 dB): 55 Hz ~ 18 kHz
Frequency Range (-10dB): 50 Hz ~ 20 kHz
Impedance: 8Ω
Input Sensitivity (@1W/1m): 92 dB SPL
Maximum SPL: 118dB
Peak SPL: 124dB
Horizontal Coverage Angle: 90°
Vertical Coverage Angle: 60°
Net Weight/Gross Weight: 20kg
Product Dimensions (W×D×H): 318×325×512mm

Rated Power: 500W
Peak Power: 1000W
Frequency Response (± 3 dB): 45Hz~18kHz
Frequency Response Range (-10dB): 30Hz~20kHz
Impedance: 8Ω
Input Sensitivity (@1W/1m): 97dB
Maximum SPL: 125dB
Peak SPL: 132dB
Net Weight/Gross Weight: 28kg
Product Dimensions (W×D×H): 439×453×710mm

Nominal Power (AES): 800W
Peak Power: 1600W
Nominal Impedance: 8Ω
Operating Frequency Response: 32 Hz ~ 180 Hz (±3 dB), 30 Hz ~ 250 Hz (-10 dB)
Sensitivity (@1W/1m): 100dB
Maximum SPL Peak: 129 dB / 135 dB
Driver: 1×18" Waterproof Coated Driver
Net Weight/Gross Weight: 42kg
Product Dimensions (W×D×H): 523×703×694mm

Rated Power: 1000W
Peak Power: 2000W
Frequency Response (± 3 dB): 45Hz~18kHz
Frequency Response Range (-10dB): 30Hz~20kHz
Impedance: 4Ω
Input Sensitivity (@1W/1m): 101dB
Maximum SPL: 128dB
Peak SPL: 134dB
Net Weight/Gross Weight: 55kg
Product Dimensions (W×D×H): 500×500×1160mm

Tweeter: 1 x 1.35" tweeter;
Woofer: 1 x 8" woofer;
Rated Power: 250W;
Frequency Response: 65Hz-18kHz (±3dB);
Sensitivity: 96dB;
Maximum SPL: 120dB;
Angle (H×V): 90°×60°;
Crossover Frequency: 2kHz;
Sockets: 2 x NL4 Speakon;
Dimensions (W×D×H): 312×312×485mm;
Weight: 16kg;

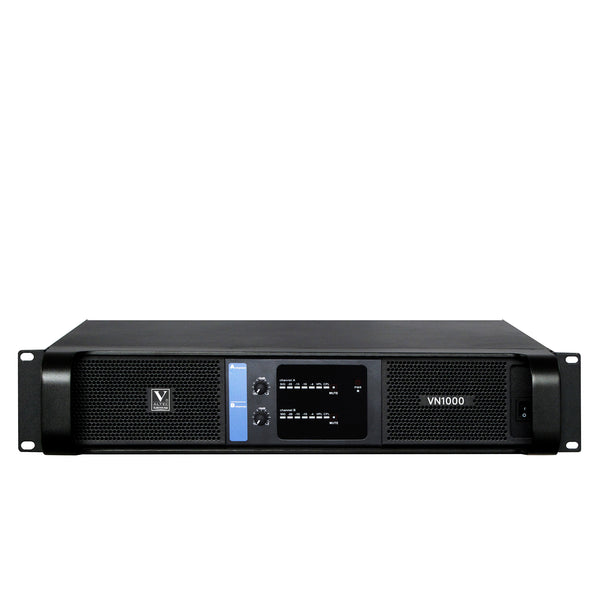

8Ω Stereo Power: 2 x 1000W
4Ω Stereo Power: 2 x 2000W
Signal-to-Noise Ratio: >112dB
Signal-to-Noise Ratio: >112dB
Damping Factor: > 1000 @ 8Ω
Total Harmonic Distortion: <0.1% (20 Hz-20 kHz 1W)
Frequency Response: 20Hz-34kHz (+0/-0.3dB, 1W/8Ω)
Chassis Dimensions (H*W*L): 88mm x 483mm x 355mm
Packaging Dimensions (H*W*L): 155mm x 600mm x 470mm
Net Weight: 9.1kg
Gross Weight: 11.5kg

8Ω Stereo Power: 4 x 1000W
4Ω Stereo Power: 4 x 2000W
Signal-to-Noise Ratio: >112dB
Damping Factor: > 1000 @ 8Ω
Total Harmonic Distortion: <0.1% (20 Hz-20 kHz 1W)
Frequency Response: 20Hz-34kHz (+0/-0.3dB, 1W/8Ω)
Chassis Dimensions (H*W*L): 88mm x 483mm x 355mm
Packaging Dimensions (H*W*L): 155mm x 600mm x 470mm
Net Weight: 10kg
Gross Weight: 12.5kg
