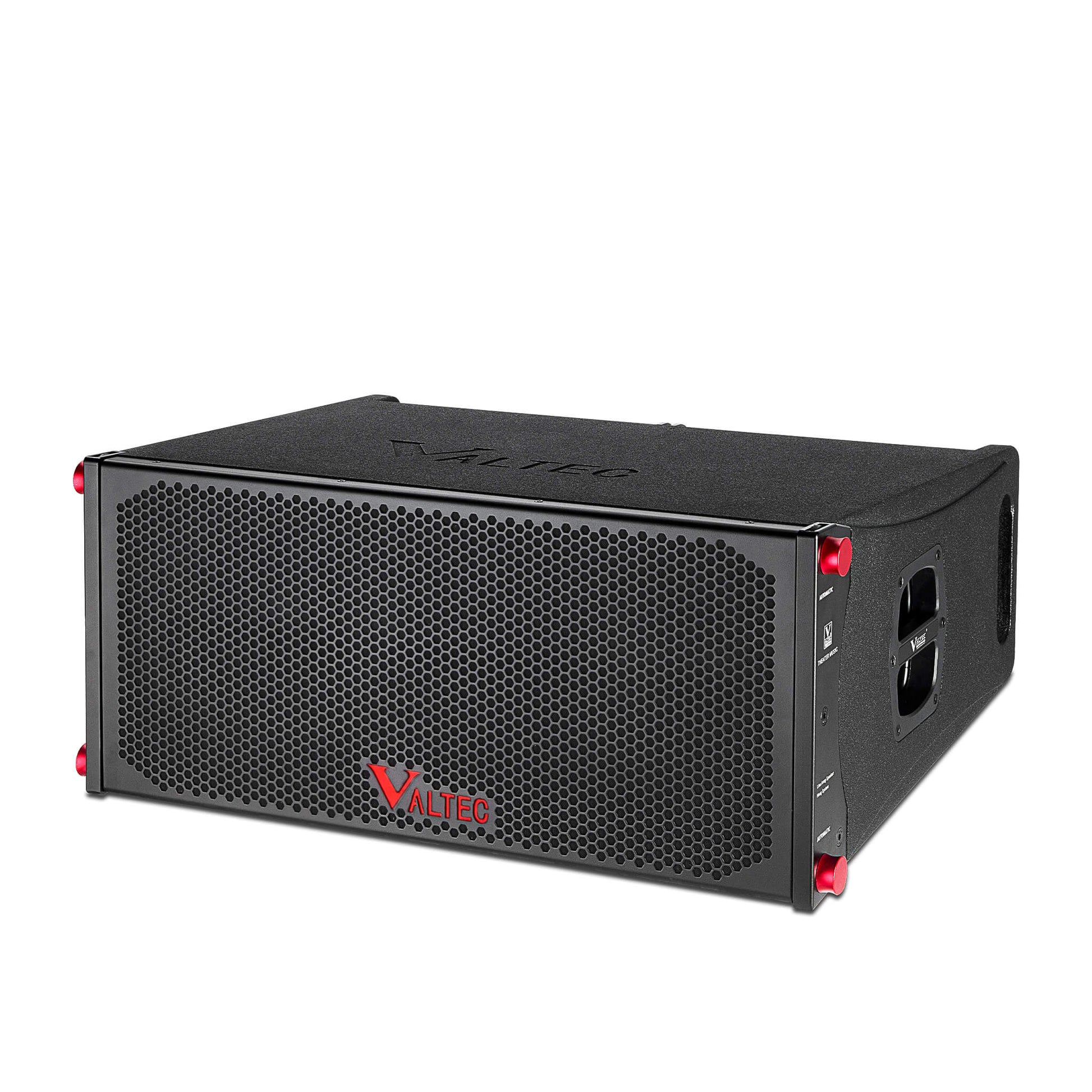

VQ8AW Dual 8-Inch All-Weather Waterproof Line Array Speakers

2-way vertical linear source array loudspeakers

Description

Patented Technology: Bass Phase Plug Loading Technology
Frequency Response: 50 Hz – 20 kHz (-10 dB)
Speaker Power: HF 80W / LF 500W
Speaker Peak Power: HF 160W / LF 1000W
Sensitivity: LF: 99 dB ± 2 dB; HF: 106 dB ± 2 dB
Maximum Sound Pressure Level: 141 dB
Driver Dimensions: HF: 1 x 3-inch neodymium compression tweeter
LF: 2 x 8-inch woofers (65mm voice coil)
Driver Impedance: LF: 2 x 16 Ω, HF: 8 Ω
Cabinet Dimensions: W 690 x H 288 x D 535 mm
Cabinet weight: 32 kg

View Product Details

DISCOVER SMART LIVING

The Valtec Tubesound VQ® series is designed for extreme outdoor environments, targeting outdoor cultural and tourism projects and large-scale speech reinforcement.
1. It integrates a thickened fiberglass (FRP) coated enclosure with a composite waterproof coating technology, creating a professional audio solution that combines waterproofing, explosion-proofing, and corrosion resistance.
2. Whether in torrential rain, sandstorms, or salt spray corrosion, it consistently delivers pure sound, redefining the durability and sound quality standards of outdoor speakers.
3. Made with industrial-grade materials, using epoxy resin and high-density fiberglass lamination, its impact resistance is increased by 300%.
4. A sealed structure with reinforced waterproof coating at weak seams and a strengthened internal frame design, achieving IP66 waterproof and dustproof performance.
5. Corrosion resistant, passing the ISO standard 2000-hour salt spray test, unaffected by acid rain, seawater, and corrosive gases from chemical plants.
6. Waterproof and dustproof, with a wide operating temperature range of -20℃ to +100℃ (passed 72-hour high and low temperature cycle impact test).
7. Resistant to wind and sand, meeting MIL-STD-810G sand and dust protection standards, suitable for desert and mining environments.
8. Ideal for outdoor cultural tourism projects, high-end entertainment projects, and large-scale speech reinforcement.

System Data
Speaker Type: Two-way vertical line array speaker
Patented Technology: Bass phase plug loading technology
Frequency Response: 50 Hz – 20 kHz (-10 dB)
Speaker Power: HF 80 W / LF 500 W
Peak Power: HF 160 W / LF 1000 W
Sensitivity: LF: 99 dB ± 2 dB; HF: 106 dB ± 2 dB
Maximum Sound Pressure Level: 141 dB
Vertical Coverage: Depends on the number of speakers and line array curvature
Vertical Angle Adjustment: 0.25, 1, 2, 3, 4, 5, 7.5, or 10°
Horizontal Coverage: 110°
Driver Dimensions: HF: 1 x 3-inch neodymium compression tweeter
LF: 2 x 8-inch woofers (65mm voice coil)
Driver Impedance: LF: 2 x 16 Ω, HF: 8 Ω
Input Connection: 4-pin PA-COM®
LINK Connection: 4-pin PA-COM®
Connector: LP28 waterproof aviation connector, 4-pin
Wiring Configuration: 1-2+…HF, 3-4+…LF
Material: 18mm birch plywood
Finish: Black polyurea paint
Grille: Front grille lined with acoustic mesh
Cabinet Dimensions: W 690 x H 288 x D 535 mm
Cabinet Weight: 32 kg
